CIT-MSE106KM2x-II: 90° 2X Accel Spdl M16, ER11, i/o 1:2, For Turret,Ext Coolant,Drill Depth 20mm
0
- GSI Part
- 5505-000349
- Machine Make
- Citizen
- Machine Model
- M2-12, M3-12, M2-16, M3-16, M4-16
- Work Location
- Turret
- Operation
- End Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 2.0X
- Max RPM
- 12000
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Cooling
- External Cooling

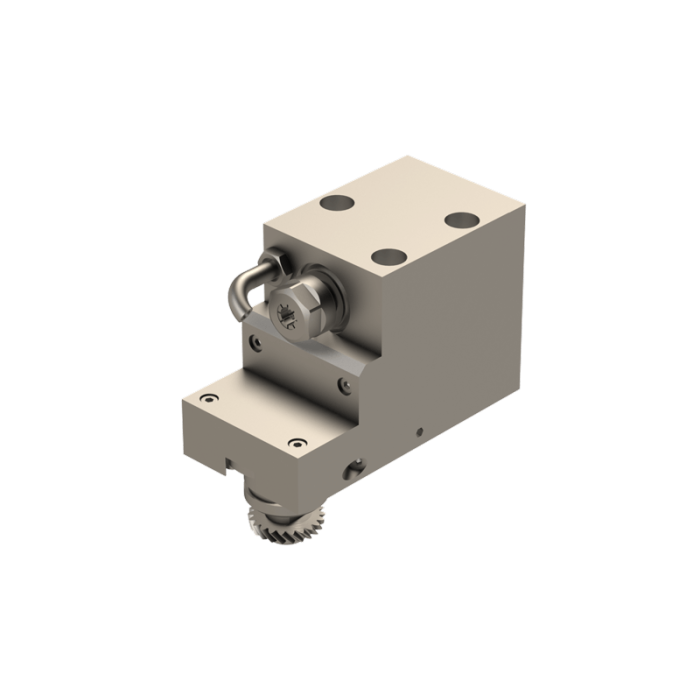

This is an accelerated live tool holder that mounts on the turret of Citizen M16 machines. It uses ER11 collets for tool holding and comes equipped with exterior high pressure coolant capability! The 1:2 gear ratio makes this holder ideal for applications that utilize micro drills and endmills!
