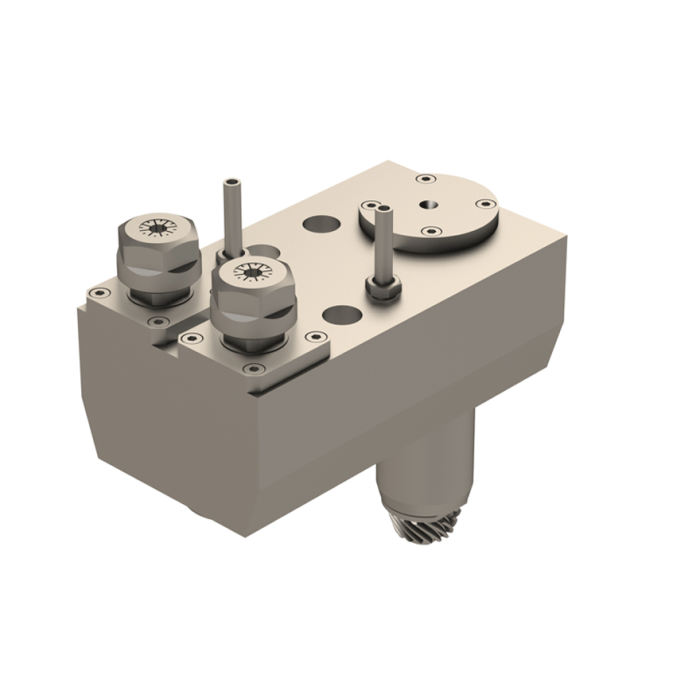

CIT-KSC510-10: 0° 2 Spdl Accel M20/32, ER16, i/o 1:15 For Y-Turret,with Ext Cool,Y-Axis,Op 1 Sub
0
- GSI Part
- 5505-000317
- Machine Make
- Citizen
- Machine Model
- M3-20, M4-20, M3-32, M4-32
- Work Location
- Turret
- Operation
- Cross Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 1.5X
- Max RPM
- 7310
- Tool Size
- ER16
- Holds # Of Tools
- 2
- Notes
- Y-Axis Required, 10mm Offset
- Cooling
- External Cooling
This cross drilling and milling double live tool attachment is for use on Citizen M32 machines. It has two stations both utilizing ER16 collets for tool holding, and comes fully equipped with exterior high pressure coolant capability. It also has a 1:1.5 gear ratio making it suited for increasing the efficacy of micro drills and endmills!
