CIT-MSH-132-08: Hob Reduction Spdl M16, Ø8mm Arbor, i/o 3:1,Turret, Adj.±0-3°, Cutter Ø24 x 16 Max
0
- GSI Part
- 5505-000303
- Machine Make
- Citizen
- Machine Model
- M2-12, M3-12, M2-16, M3-16
- Work Location
- Turret
- Operation
- Gear Hobbing
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Decreased 3.0X
- Max RPM
- 2165
- Tool Size
- Ø8mm
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable ±3°

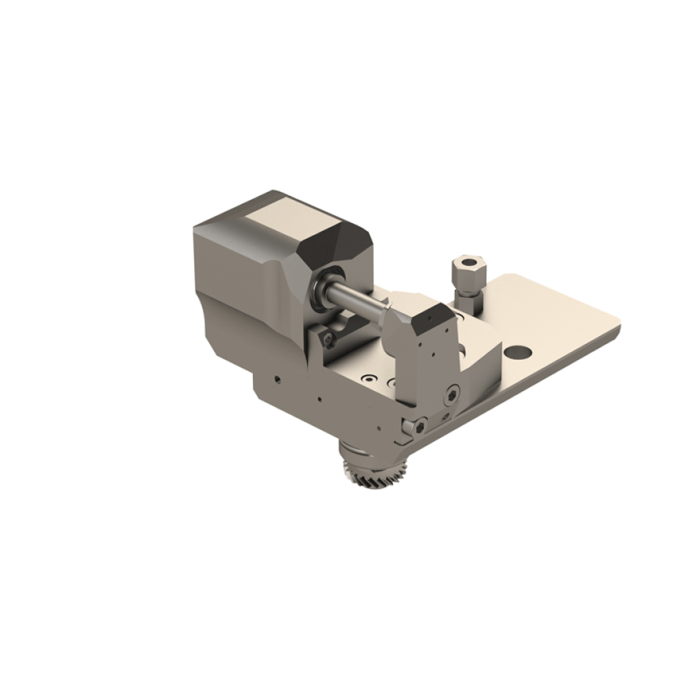

This is a specialty gear hobbing tool holder for the Citizen M16 machine. This tool mounts on the turret of the machine and has 3 degrees of inclination. It has an 8mm shank that supports 16-18-24mm mill diameters and 6-8-10-12 and 16mm width cutters. This holder offers a 3:1 gear ratio allowing for much higher torque.
