CIT-KSC-DEC-L-10x3: 0° 3X Accel Shifted Spindle M20/32, ER11, i/o 1:3, Ext Coolant, 15mm from Z0
0
- GSI Part
- 5505-000296
- Machine Make
- Citizen
- Machine Model
- M3-20, M4-20, M3-32, M4-32
- Work Location
- Turret
- Operation
- Cross Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 3.0X
- Max RPM
- 15060
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Notes
- 10mm Offset
- Cooling
- External Cooling

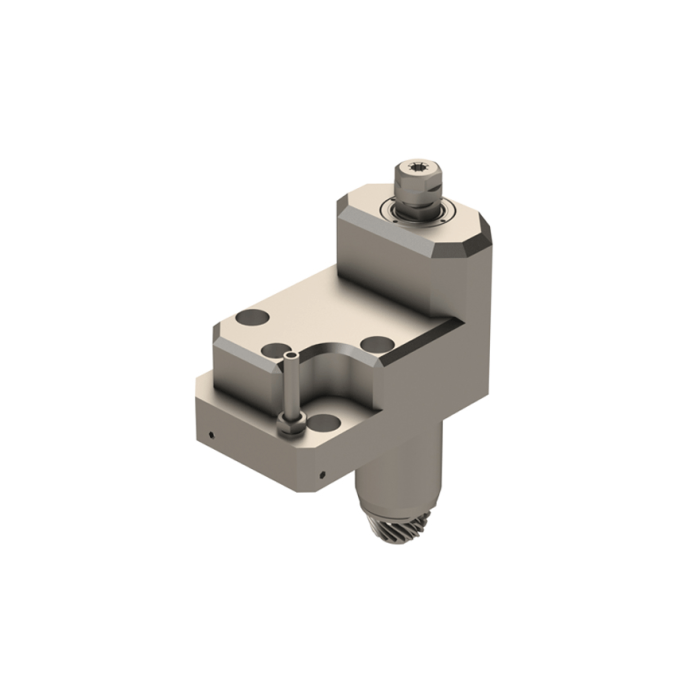

This is an accelerated live tool holder for use on Citizen M32 machines. It mounts on the turret of the machine and uses ER11 collets for toolholding. This holder comes fully equipped with exterior high pressure coolant capability! The 1:3 gear ratio of this unit makes it ideal for maximizing the efficacy of micro drills and endmills!
