CIT-MSC-507-4x: 0° 4X Accel Spdl A20/L12/L220/L32/M16/M32, ER8, i/o 1:3.8, T06-10, T21-23, T31-34
2
- GSI Part
- 5505-000294
- Machine Make
- Citizen
- Machine Model
- A3-20, L1-12, L20E, L2-20
- Work Location
- Main Spindle, Sub Spindle
- Operation
- Cross Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 4.0X
- Max RPM
- 38000
- Tool Size
- ER08
- Holds # Of Tools
- 1

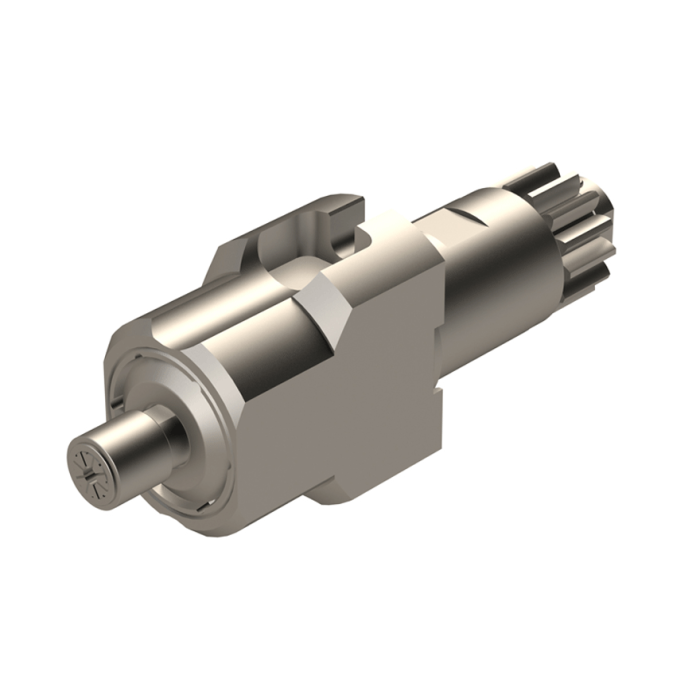

This is a 1:3.8 gear ratio high speed axial live tool holder for use on upper gang tool post or back tool post on Citizen A20/A32/L12/L20/L25/L32/M16/M32 Machines, using an ER08 collet as a toolholder. The high speed capability is ideal for usage of micro drills and endmills.
