CIT-GSS1530: 90° Saw Spindle For A20/L12/L220/L20, ER11, i/o 5:3, Pos T34, Cutter Ø30mm-Ø63mm max

Login Required
0
Call for availability or request a quote now.
GSI Part
5505-000276
Machine Make
Citizen
Machine Model
L1-12, L20E, L2-20, L5-20
Work Location
Main Spindle, Sub Spindle
Operation
Slitting Saw
Static or Live
Live Tool
Single Or Double Ended
Single Ended
Speed
Decreased 1.5X
Max RPM
5400
Tool Size
ER11
Holds # Of Tools
1
Max Tool Thickness
2mm
Max Tool Diameter
63mm

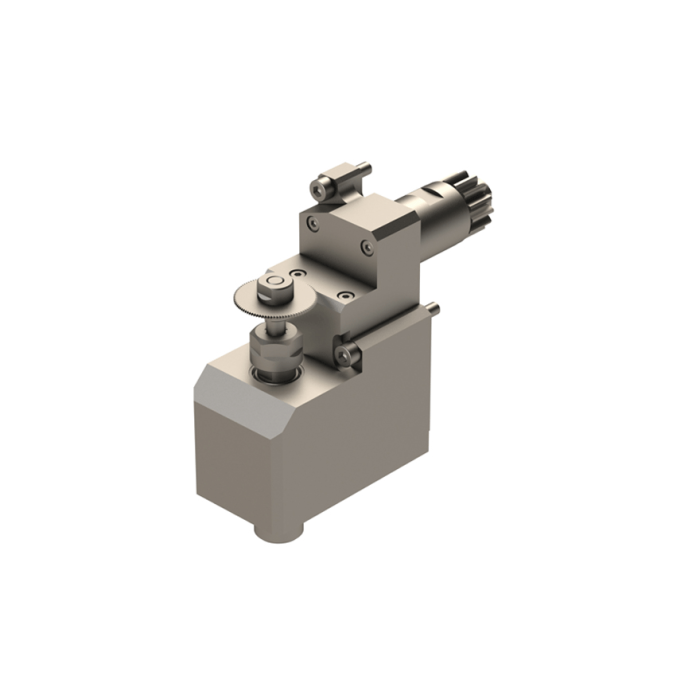

This slitting saw tool holder goes on the back tool post of Citizen A20/L12/L20/L25 machines. It has an 8mm shank diameter and utilizes ER11 collets. This holder has a max saw diameter of 63mm. Max width of 2mm, and has a max RPM of 5400. This tool has a 5:3 gear ratio, resulting in more torque!
