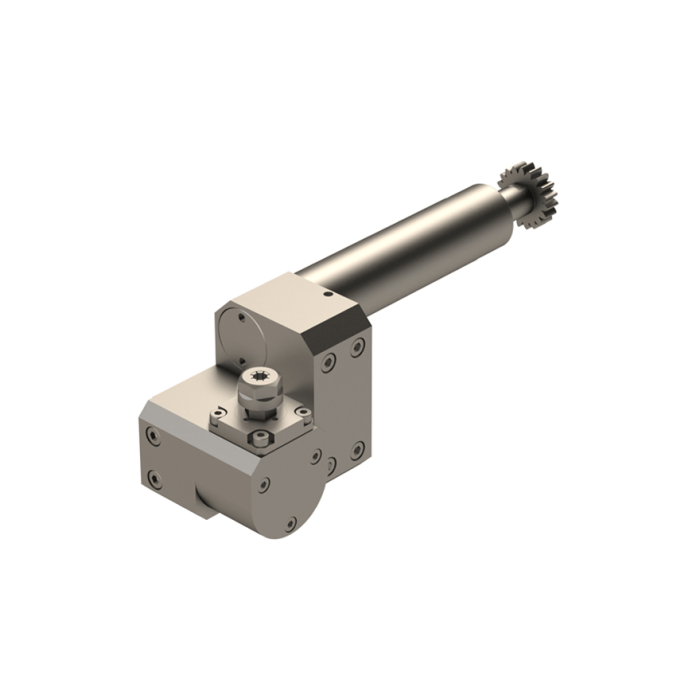

CIT-GSA-107: Angle Spindle Adj 0-180° For L20E/M20/M32, ER11, i/o 1:1, Position T08-T10 Req 2 Pos.
0
- GSI Part
- 5505-000235
- Machine Make
- Citizen
- Machine Model
- L20E, L5-20, L7-20, M3-20, M3-32
- Work Location
- Main Spindle
- Operation
- Angled Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable 0-180°
This is an angular adjustable upper gang post live tool for Citizen L20/25/M32 machines. Between 0-180 degrees this tool takes up two stations but allows full angular adjustment relative to the face of the part!
