CIT-GSA-407: 2.5X Accel Angle Spindle Adj 0-180°, M12/16, ER11, i/o 1:2.5, Pos T06-09, Req 2 Pos
0
- GSI Part
- 5505-000203
- Machine Make
- Citizen
- Machine Model
- C16, M2-12, M3-12, M2-16, M3-16
- Work Location
- Main Spindle
- Operation
- Angled Drilling / Milling
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Increased 2.5X
- Max RPM
- 20000
- Tool Size
- ER11
- Holds # Of Tools
- 1
- Adjustable Range
- Adjustable 0-180°

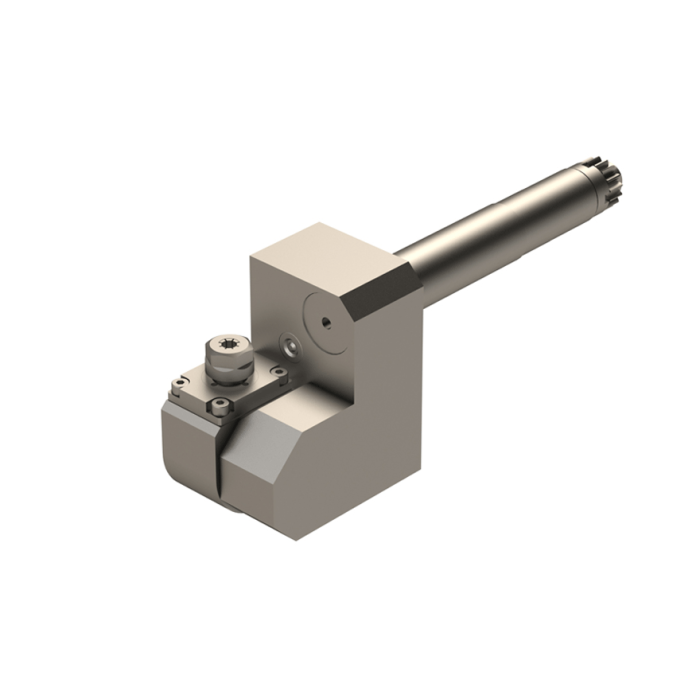

This is an angle adjustable accelerated live tool holder for the Citizen M16 machine. This tooling block allows for 0-180 degree adjustment on the gang tool post. It utilizes er11 collets for tool holding and has a 1:2.5 gear ratio, making it ideal for fully maximizing the capability of smaller live tools!
