CIT-GSS-250: 0° Saw Spdl M212/M216/M312/M316
0
- GSI Part
- 5505-000133
- Machine Make
- Citizen
- Machine Model
- C16, M2-12, M3-12, M2-16, M3-16
- Work Location
- Main Spindle
- Operation
- Slitting Saw
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- Decreased 2.0X
- Max RPM
- 8000
- Tool Size
- Ø16mm
- Holds # Of Tools
- 1
- Max Tool Diameter
- 50mm

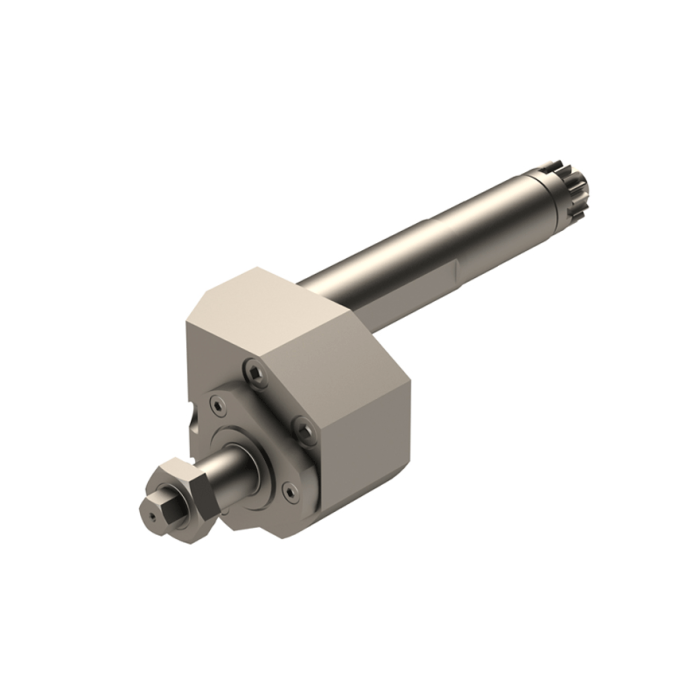

This is a slitting saw holder for the Citizen M16 machine. This holder mounts in two positions on the gang tool slide of the machine, has a 16mm shank diameter, and can support up to a 50mm maximum diameter saw blade. This holder has a 2:1 gear ratio allowing for higher torque.
