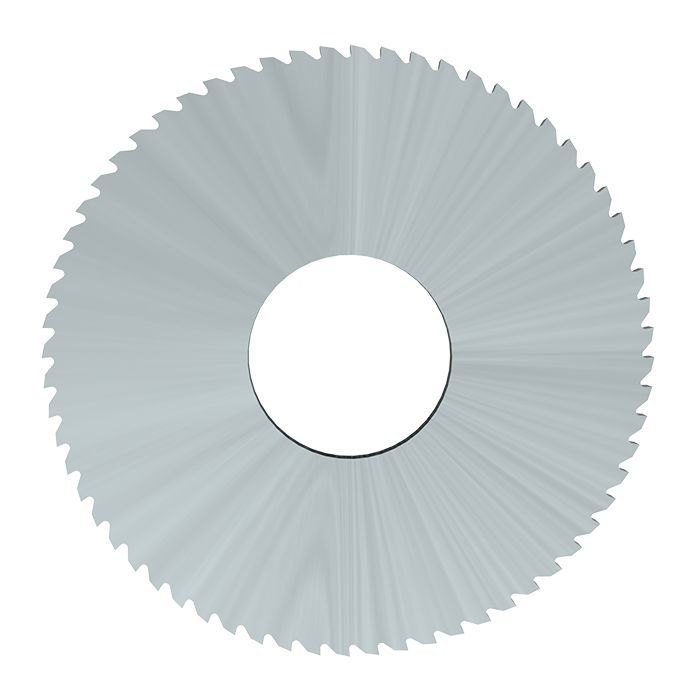

SSM-1906-071120G: Saw mm 19.05 OD x Ø6.35 ID x 0.711 W +/-0.005 width 20Z ALTIN COATED
1
- GSI Part
- 5040-000600
- Tooth Shape
- Straight Tooth
- Standard
- Metric
- Tooth Count
- 20
- Blade OD (in)
- 0.7500 in
- Blade OD Tolerance (in)
- ±0.0165 in
- Blade OD (mm)
- 19.05 mm
- Blade OD Tolerance (mm)
- ±0.42 mm
- Blade ID (in)
- 0.2500 in
- Blade ID Tolerance (in)
- +0.0003/-0.000 in
- Blade ID (mm)
- 6.35 mm
- Blade ID Tolerance (mm)
- +0.008/-0.000 mm
- Blade Thickness (in)
- 0.0280 in
- Blade Thickness Tolerance (in)
- +0.0004/-0.0002 in
- Blade Thickness (mm)
- 0.711 mm
- Blade Thickness Tolerance (mm)
- +0.01/-0.005 mm
- Helix Angle
- 0°
- Coating
- AlTiN
- Material
- Carbide
Genevieve Swiss Industries carries a full line of solid carbide slitting saws directly imported from Switzerland. Available from stock in either fine and extra-fine tooth configurations with tooth counts ranging from 40-120 teeth per saw.
Precision ground accuracy
Superior surface finish
High tooth count for cutting hard metals
Hollow ground side clearance
Full radius, V-cutter, & staggered versions available
Designed and manufactured to the highest quality & standards
