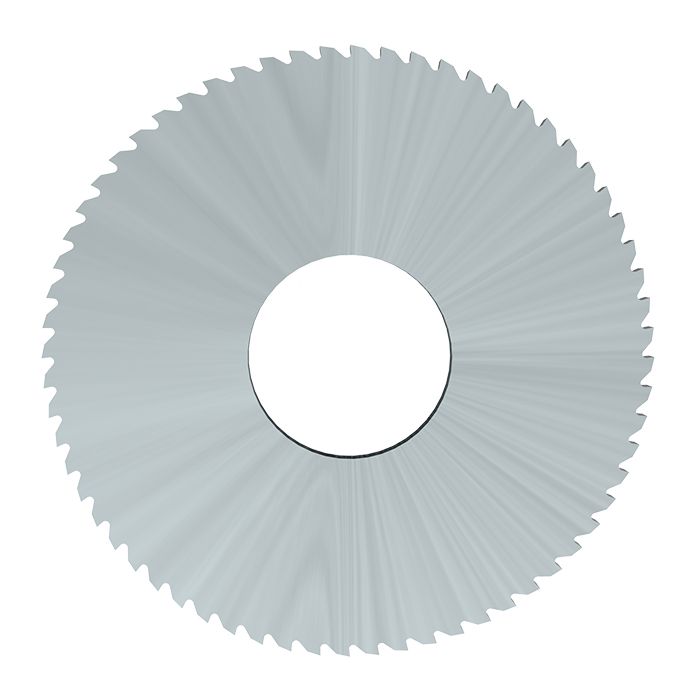

SSM-5008-218100G: Saw mm 50 OD x 8 ID x 2.185 W 100z
0
- GSI Part
- 5040-000508
- Tooth Shape
- Straight Tooth
- Standard
- Metric
- Tooth Count
- 100
- Blade OD (in)
- 1.9685 in
- Blade OD Tolerance (in)
- ±0.0236 in
- Blade OD (mm)
- 50 mm
- Blade OD Tolerance (mm)
- ±0.6 mm
- Blade ID (in)
- 0.3150 in
- Blade ID Tolerance (in)
- +0.0004/-0.000 in
- Blade ID (mm)
- 8 mm
- Blade ID Tolerance (mm)
- +0.009/-0.000 mm
- Blade Thickness (in)
- 0.0860 in
- Blade Thickness Tolerance (in)
- +0.0004/-0.0002 in
- Blade Thickness (mm)
- 2.185 mm
- Blade Thickness Tolerance (mm)
- +0.01/-0.005 mm
- Helix Angle
- 0°
- Material
- Carbide
Genevieve Swiss Industries carries a full line of solid carbide slitting saws directly imported from Switzerland. Available from stock in either fine and extra-fine tooth configurations with tooth counts ranging from 40-120 teeth per saw.
Precision ground accuracy
Superior surface finish
High tooth count for cutting hard metals
Hollow ground side clearance
Full radius, V-cutter, & staggered versions available
Designed and manufactured to the highest quality & standards
