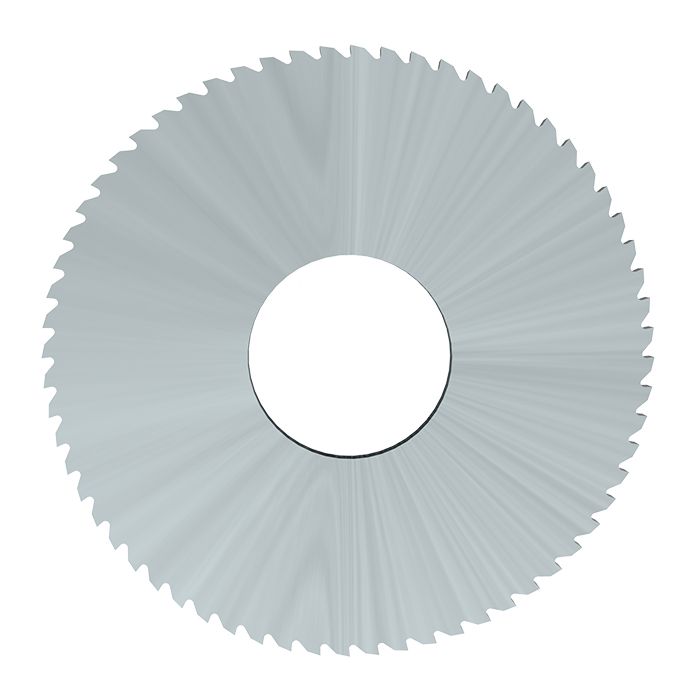

SSM-2005-220080G: Saw mm 20 OD x 5 ID x 2.20 W 80z Carbide
6
- GSI Part
- 5040-000454
- Tooth Shape
- Straight Tooth
- Standard
- Metric
- Tooth Count
- 80
- Blade OD (in)
- 0.7874 in
- Blade OD Tolerance (in)
- ±0.0165 in
- Blade OD (mm)
- 20 mm
- Blade OD Tolerance (mm)
- ±0.42 mm
- Blade ID (in)
- 0.1969 in
- Blade ID Tolerance (in)
- +0.0003/-0.000 in
- Blade ID (mm)
- 5 mm
- Blade ID Tolerance (mm)
- +0.008/-0.000 mm
- Blade Thickness (in)
- 0.0866 in
- Blade Thickness Tolerance (in)
- +0.0004/-0.0002 in
- Blade Thickness (mm)
- 2.200 mm
- Blade Thickness Tolerance (mm)
- +0.01/-0.005 mm
- Helix Angle
- 0°
- Material
- Carbide
Genevieve Swiss Industries carries a full line of solid carbide slitting saws directly imported from Switzerland. Available from stock in either fine and extra-fine tooth configurations with tooth counts ranging from 40-120 teeth per saw.
Precision ground accuracy
Superior surface finish
High tooth count for cutting hard metals
Hollow ground side clearance
Full radius, V-cutter, & staggered versions available
Designed and manufactured to the highest quality & standards
