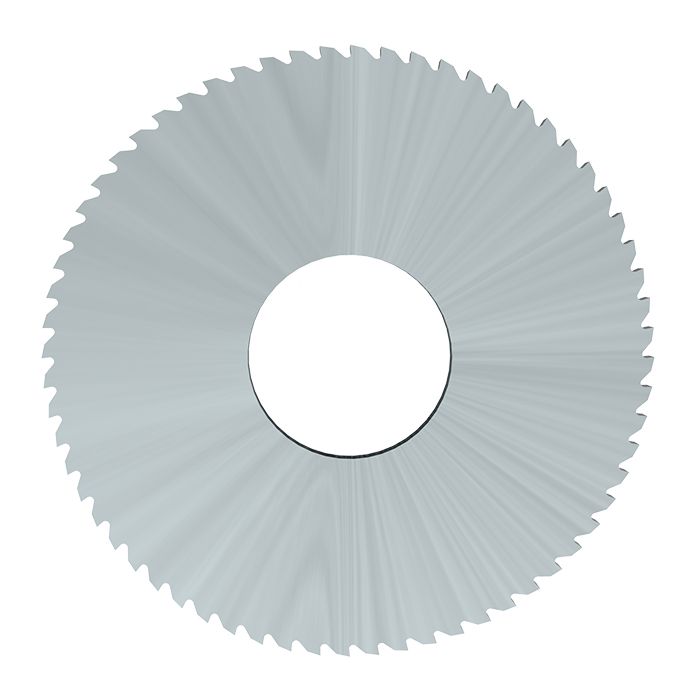

SSM-1003-030064G: Saw mm 10 OD x 3 ID x 0.30 W 64z Carbide
2
- GSI Part
- 5040-000449
- Tooth Shape
- Straight Tooth
- Standard
- Metric
- Tooth Count
- 64
- Blade OD (in)
- 0.3937 in
- Blade OD Tolerance (in)
- ±0.0114 in
- Blade OD (mm)
- 10 mm
- Blade OD Tolerance (mm)
- ±0.29 mm
- Blade ID (in)
- 0.1181 in
- Blade ID Tolerance (in)
- +0.0003/-0.000 in
- Blade ID (mm)
- 3 mm
- Blade ID Tolerance (mm)
- +0.008/-0.000 mm
- Blade Thickness (in)
- 0.0118 in
- Blade Thickness Tolerance (in)
- +0.0004/-0.0002 in
- Blade Thickness (mm)
- 0.300 mm
- Blade Thickness Tolerance (mm)
- +0.01/-0.005 mm
- Helix Angle
- 0°
- Material
- Carbide
Genevieve Swiss Industries carries a full line of solid carbide slitting saws directly imported from Switzerland. Available from stock in either fine and extra-fine tooth configurations with tooth counts ranging from 40-120 teeth per saw.
Precision ground accuracy
Superior surface finish
High tooth count for cutting hard metals
Hollow ground side clearance
Full radius, V-cutter, & staggered versions available
Designed and manufactured to the highest quality & standards
