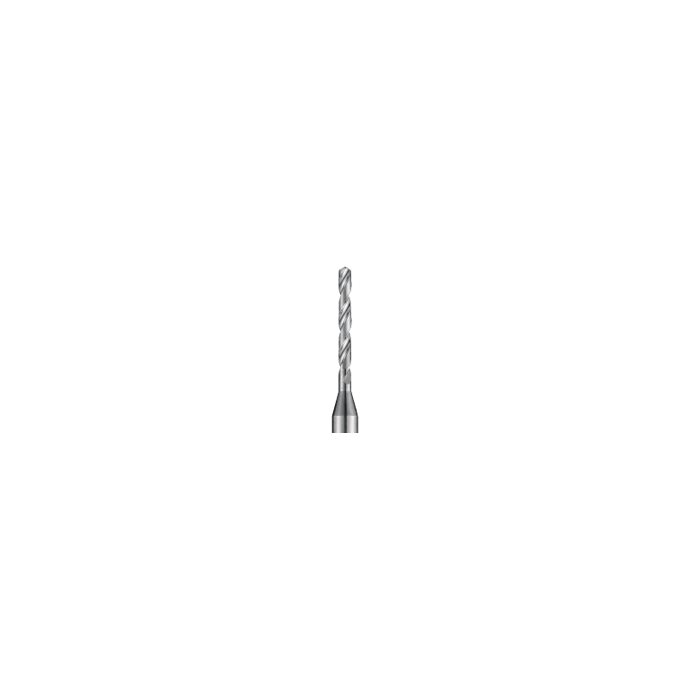

GD5-130-1.5-1000-C: 1.30mm (.0512") OD, 1.5mm Shank, 10mm Flute Length, 120 Deg Point UHM20
0
- GSI Part
- 3650-000220
- Series No.
- 3650 Series
- Depth Of Cut
- 5-7 x Dia.
- Flute Dia. (mm)
- 1.3
- Flute Dia. (in)
- 0.0512
- Length Of Cut (mm)
- 10
- Length Of Cut (in)
- 0.3937
- Drill Point Angle
- 140°
- Shank Diameter (mm)
- 1.5
- Shank Diameter (in)
- 0.0591
- OAL
- 30
- Number Of Flutes
- 2
- Helix Angle
- 35°
"
GenSwiss Micro Drills are a cost effective solution for hard to find small diameter solid carbide micro drills & micro spotting tools. Swiss-style precision ensures maximum reliability, accuracy and finish results. When consistency of hole tolerance control is paramount, look to GenSwiss micro drills.
- Sizes From .1mm (.004in) Up To 3mm (.1181in)
- Precision Ground & Finished
- Makes Use Of Readily Available ER Collets
