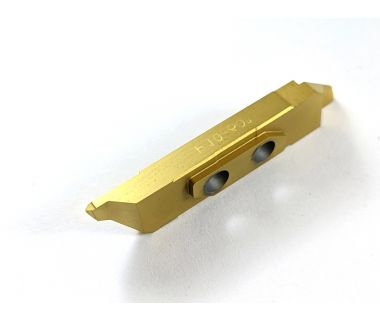

3006-48 UN 10-60 VP L UHM20 TX+
0
- GSI Part
- 7005-044623
- Series
- CUT3000
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Thread Standard
- Inch
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Depth Of Cut (c)
- 1.4 mm
- (P) Pitch Threads/inch
- 48
- (P) Pitch mm
- 0.529
- (a1)
- 0.29 mm
- (a2)
- 0.29 mm
- hmin
- 0.325 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
