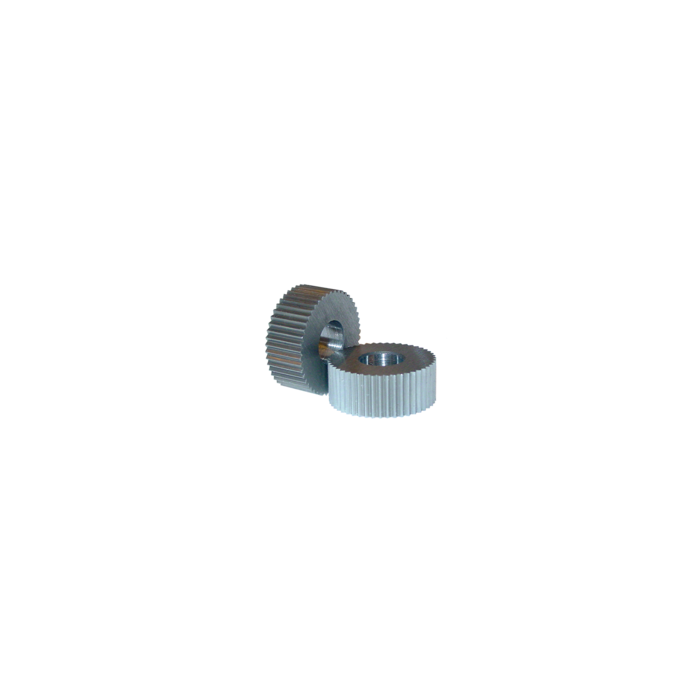

KDS-MLS0-1.0HS: Knurl Die ML-Metric Straight Form w/1.0 (25.4TPI) Pitch 20mmx 8mmx 10m wide, HSS
0
- GSI Part
- 2020-000225
- Knurl Series
- ML
- Knurl Pattern
- Straight
- Form Type
- Standard
- Knurl Wheel Dimensions
- 20 mm x 8 mm x 12 mm
- Knurl Wheel ID
- 8 mm
- Knurl Wheel OD
- 20 mm
- Knurl Wheel Width
- 12 mm
- Metric Pitch
- 1 mm
- Material
- High Speed Steel
Standard Knurl Dies
For Bump Knurling
Genevieve Swiss offers a full line of precision knurling tools for Swiss-type applications. Optional wheel geometries are available to suit your specific needs. Call for details or to discuss applications.
- Precision lapped tooth forms provide superior knurled surfaces
- Sides and Bore are Finish Ground to Maintain Close Tolerances
