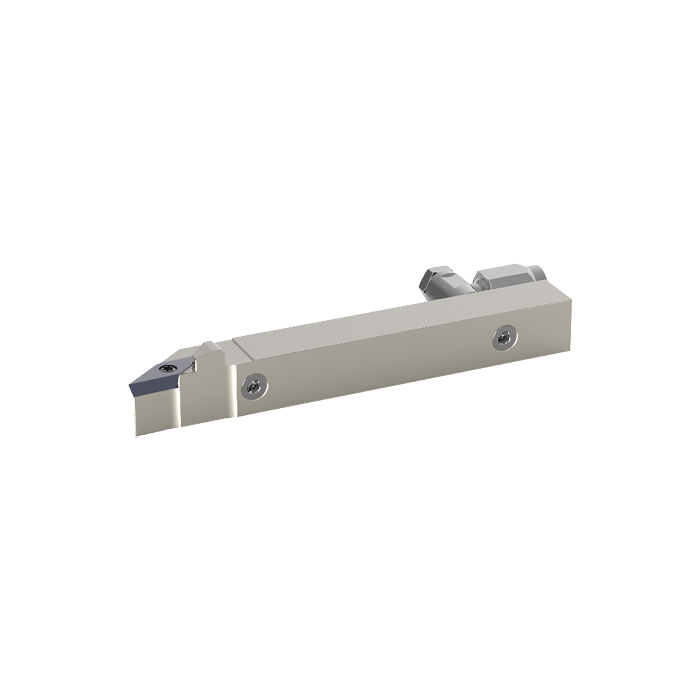

SVJCR 1/2" H11 U IC
3
- GSI Part
- 7005-146426
- Holder Type
- Standard
- Holder Style
- SVJC
- Shank Type
- Square
- Repeatability
- < 10µm
- Execution
- Right Hand
- Coolant Capable
- Yes
- Side Coolant Port Size (c)
- M5
- Insert Type
- ISO 35° VC
- Shank Width (h)
- 12.7 mm
- Shank Height (b)
- 12.7 mm
- Shank Length (l)
- 100 mm
- (l1)
- 100 mm
- (x1)
- 16.2 mm
- (z1)
- 21 mm
- Cutting Edge Angle
- 93°
Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.
- Fits ISO VC 35° inserts
- Coolant-thru
