CTE-16-1.59-064160: Ti-Loc ® Mill Extension - Ø1/16", ER16 Taper, Ext. Ø6.35 x 16mm w/Stop Screw

Login Required
4
GSI Part
4900-316159
ER Taper Size
ER16
Extension Length (L1)
16mm
Tool Bore Size (D1)
0.062in
Extension Diameter (D2)
6.4mm
TIR
< .0002in
"

GenSwiss Ti-Loc® Micro End Mill Extensions provide an excellent method of holding small shank rotary tooling in a rigid fashion that makes clearing the guide bushing or sub-spindle easy while ensuring exceptional rigidity and low TIR. A must-have for any micro milling application! Signature Series  Ti-Loc® Mill Extensions are designed to work with virtually any collet or tool holder that employs the dual angle ER collet system (DIN6499).  Simply insert the Ti-Loc holder into any ER nut and twist to align the locking cam profile.

• Reduces Tolerance “Stacking” for low TIR <.0002in
• Directly Mounts to ANY ER Taper Live or Static Tool Position
• Extends the Reach of Micro-Endmills and Small Shank Rotary Tools
• Enables QUICK CHANGE of tooling
Coolant Thru Capability in ER16 Sizes

"""
Related Products
RBT-0828-07.310T: Hex .2876-.2880 L2=.432   Shk Ø8x28  Gr GSX   Vented   Pos Fa

RBT-0828-07.310T: Hex .2876-.2880 L2=.432 Shk Ø8x28 Gr GSX Vented Pos Fa

Learn More & Buy
CC-CHK-5.6:

CC-CHK-5.6:

Learn More & Buy

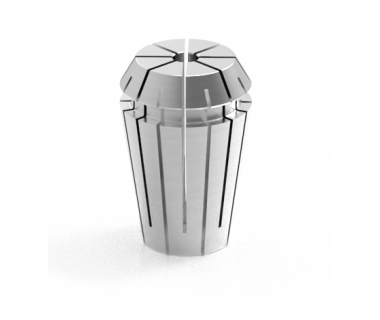

CC-ER25i-1/2: RegoFix ER25 1/2" Collet, Range .460-.500

CC-ER25i-1/2: RegoFix ER25 1/2" Collet, Range .460-.500

Learn More & Buy
CC-ER11-03.0: RegoFix  ER 11 3.0mm Collet, Range 2.50-3.00

CC-ER11-03.0: RegoFix ER 11 3.0mm Collet, Range 2.50-3.00

Learn More & Buy

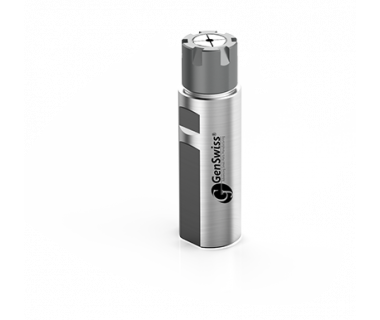

CQS-S20-1250-CSE: ER20 Collet sleeve, 1.25" Shank x 4.5" OAL
