CS-20-220-080: ER20 Collet Sleeve Ø22 x80mm Shank w/Flat, Thru, No Stop, Mini-Nut

Login Required
0
We don't have this product in stock now, items will be replenished soon and can still be ordered but will have a delivery delay.
GSI Part
1025-000150
Type
Single Ended
ER Collet Size
ER20
Standard
Metric
Nut Type
Mini-Nut
Shank Diameter (D1)
22 mm
Shank Length (L1)
80 mm
OAL (L2)
97 mm
Rear Coolant Port
None
Side Coolant Port
None
Included Fitting
None
"

ER Style Collets are the tool holding system of choice for use in CNC machine applications. Swiss Precision
collet sleeves provide rigid & accurate holding of ID tooling. These collet sleeves feature ground shanks
and tapers. Mini nuts are used to reduce interference and to make setup and tool changing easier than collet
sleeves with hexagonal clamping nuts.

"
Related Products

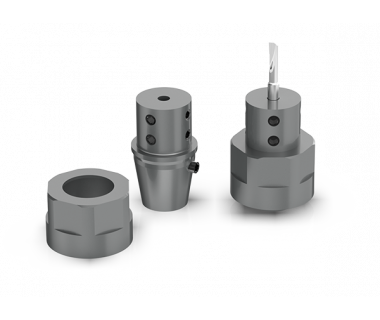

CQS-SH16-25001: ER16 w/ 1/4'' Bore - Boring Adaptor w/ M19 x 1mm Nut and Locator Pin
