CIT-GSS15835-DEC: 0° Saw Spindle w/Pin A20/A32/L20/L32/M32, Arbor Ø15.875mm, Ø63mm, i/o 1:1
0
- GSI Part
- 5505-000543
- Machine Make
- Citizen
- Machine Model
- A3-20, A2-32, D25, L2-20, L1-32, M4-32, M5-32
- Work Location
- Gang Slide
- Operation
- Slitting Saw
- Static or Live
- Live Tool
- Single Or Double Ended
- Single Ended
- Speed
- 1:1
- Tool Size
- Ø.625in
- Holds # Of Tools
- 1
- Notes
- With pin
- Max Tool Thickness
- 8mm
- Max Tool Diameter
- 63mm

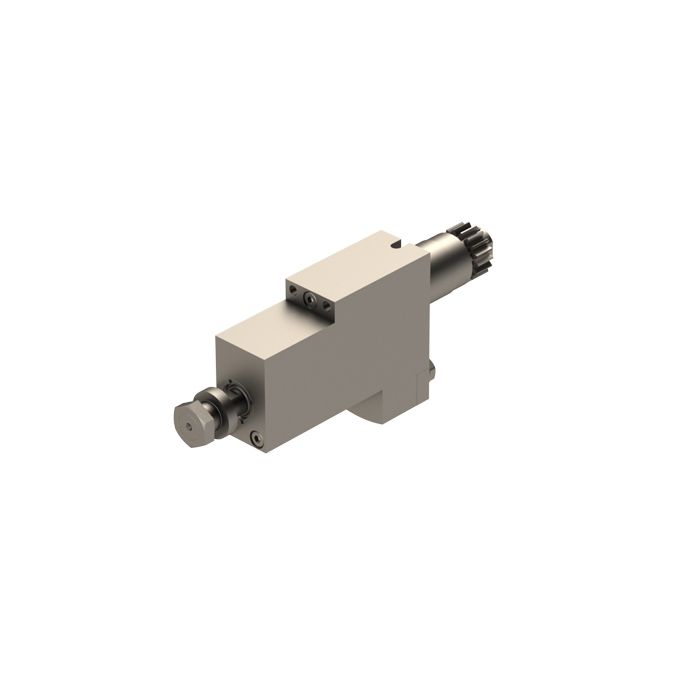

This is a slitting saw live tool for use on the upper gang tool post of a Citizen A20/L20/L25/A32/L32/M32/D25 machine. It has a 5/8" shank diameter, and can support up to a 63mm diameter and 8mm thick saw blade.
