UMDT 30-0390 x 0350 S60 HMP700

GSI Part: 7006-270236

Series No.: UMDT

Flute Dia. (mm): 3.90mm

Flute Dia. (in): 0.1535in

Length Of Cut (mm): 3.50mm

Length Of Cut (in): 0.1378in

Drill Point Angle: 140°

Tool Material: Carbide

Shank Diameter (mm): 6.00mm

Shank Diameter (in): 0.2362in

Number Of Flutes: 2

Helix Angle: 25°

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

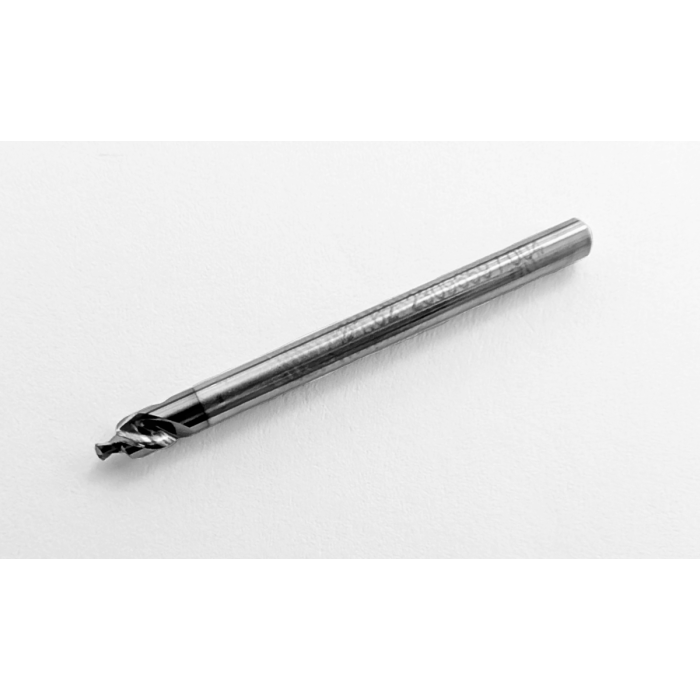

Solid Carbide Micro Pilot Drill for Centering & Spot Drilling for milling TORX T30 contours, optimized geometry for machining stainless steel and titanium.
