UMDT 4-0090 x 0071 S30 HMP700

GSI Part: 7006-270227

Series No.: UMDT

Flute Dia. (mm): 0.90mm

Flute Dia. (in): 0.0354in

Length Of Cut (mm): 0.71mm

Length Of Cut (in): 0.028in

Drill Point Angle: 140°

Tool Material: Carbide

Shank Diameter (mm): 3.00mm

Shank Diameter (in): 0.1181in

Number Of Flutes: 2

Helix Angle: 25°

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

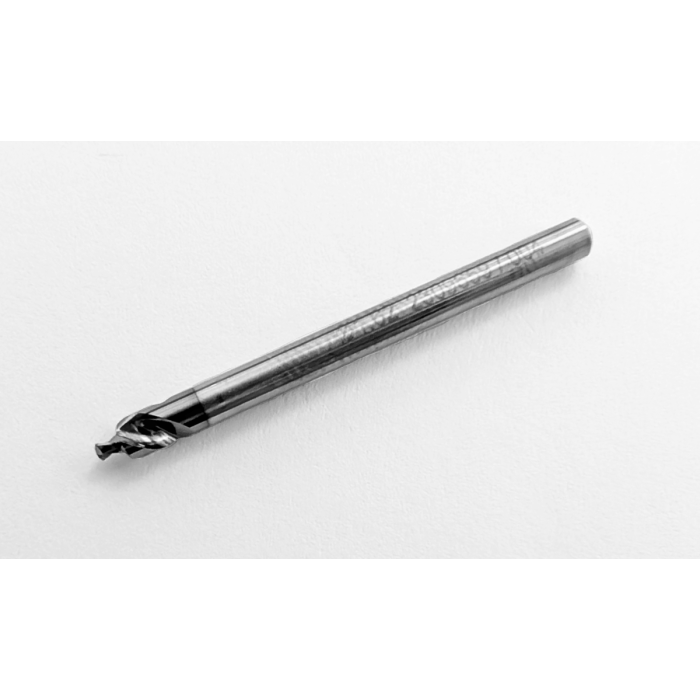

Solid Carbide Micro Pilot Drill for Centering & Spot Drilling for milling TORX T4 contours, optimized geometry for machining stainless steel and titanium.
