UMMT 40050 x 018 H05 S40 HMP600
10
- GSI Part
- 7006-270223
- Series
- Micro Torx - UMMT
- Cut Length to Diameter
- 5 x Dia.
- Number Of Flutes
- 4
- Flute Dia. (in)
- 0.0197in
- Flute Dia. (mm)
- 0.50mm
- Length of Cut (in)
- 0.0354in
- Length of Cut (mm)
- 0.90mm
- Shank Dia (in)
- 0.1575in
- Shank Dia (mm)
- 4.00mm
- OAL (in)
- 1.5748in
- OAL (mm)
- 40.00mm
- Helix Angle
- 30°
- Material
- Carbide
- Neck Length (in)
- 0.0984in
- Neck Length (mm)
- 2.50mm
- Torx Size
- T10 / T15
- (Coating)
- HMP600
- Coolant-Thru
- No

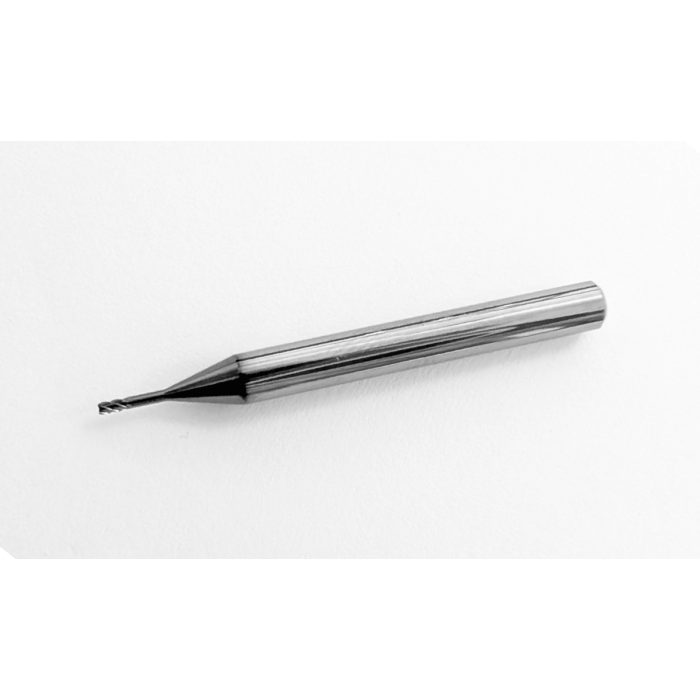

Micro Solid Carbide End Mill perfectly suited for milling the TORX T10 / T15 contour. Economical, process-safe and precise even for hard-to-handle materials.
