3000-5/8"x125 R GL IC+
0
- GSI Part
- 7005-215201
- Holder Type
- CutOff/Groove
- Operation Type
- CutOff/Groove
- Shank Type
- Square
- Repeatability
- <10µm
- Execution
- Right Hand
- Coolant Capable
- Yes
- Rear Coolant Fitting Part#
- 4005-000104
- Side Coolant Fitting Part#
- 4005-000111
- Side Coolant Port Size (c)
- G1/8
- Insert Type
- CUT 3000
- Shank Width (h)
- 0.625 in
- Shank Height (b)
- 0.625 in
- Shank Length (l)
- 125 mm
- (x1)
- 18.875 mm
- (z1)
- 17.2 mm
- Insert Thickness mm
- 3.5 mm

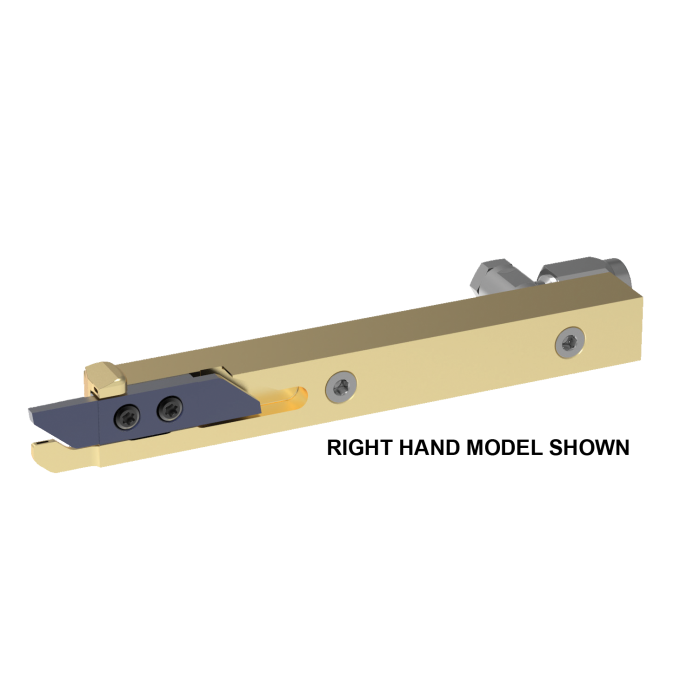

CUT 3000 IC+ Gold Line Holder
The multidec® Gold Line tool holder is made for efficient grooving and free turning on sliding headstock automatic lathes. The cooling system makes it possible to double the lifetime of the cutting edges and increase the cutting parameters for increased manufacturing productivity.
Two Gold Line Holder types are available. One "IC+" (IC-Plus) is equipped with chip breaker and clearance angle cooling. The other type "IC-FK" is a version exclusively equipped with clearance angle cooling, which enables the combination with the innovative multidec®-LUBE coolant-thru wedges.
- 3D Coolant Holes with Optimized Clearance Angle Cooling
- Increase tool life by up to 185%
- Chip Breaker Cooling to Optimize Chip Control, Reduce Built-Up Edge and Improve Tool Life
- PVD (Physical Vapor Deposition) Coating for Highest Wear and Corrosion Protection
- Available for grooving inserts with a minimum width of 2mm Shop Here
