1604-2.5-4-5 FRV 29015 GB20 UHM20 TX+
0
- GSI Part
- 7005-211399
- Series
- CUT1604
- Operation/Geometry
- Back Turn
- Chip Breaker
- GB20 Chip Breaker
- Execution
- Right Handed Inverted Cut
- Coating
- UHM20 TX+ Coated
- Insert Material
- Carbide
- Depth Of Cut (c)
- 4.5 mm
- Width Of Cut (a)
- 2.5 mm
- Relief Angle (β)
- 61°
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 27°
- Edge Sharpness
- Sharp Cutting Edge
- Repeatability
- <10µm
- (t)
- 4 mm

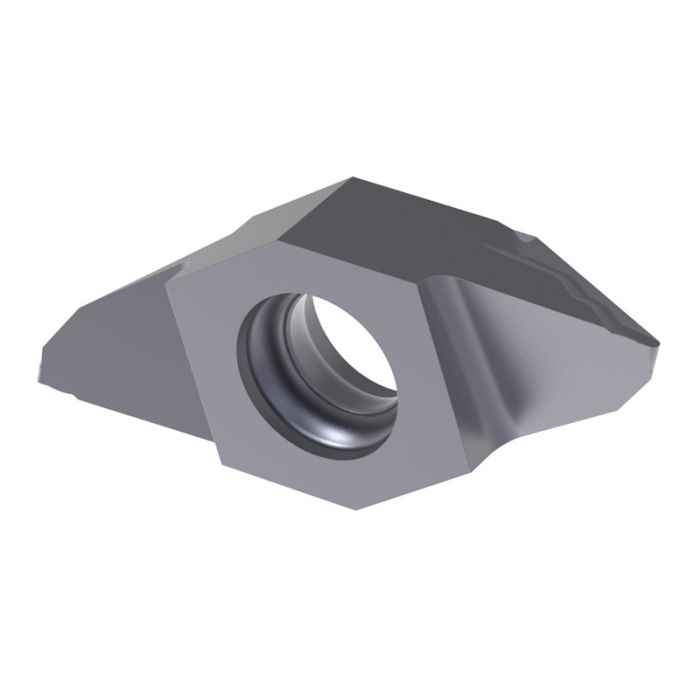

CUT1604 GB20 Back Turning Inserts
With Type-GB20 Chip Control
multidec® 1604 turning inserts are designed for back turning operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- UHM20 TX+
- 2.5mm (.0984in) insert widths
- Inverted Cut
- Type-GB20 chip control: Armed with an extremely sharp cutting edge with multi-stage Chip Control, the GB20 Chip Control enhances the creation of back turned profiles with process-reliable chip formation at low and high cutting depths as well as across low and high feed rates.
NOTE: Not recommended for use in plastics and titanium due to lower tool life in these materials. Check speeds and feeds for proper usage.
