1604-2.5-4-5 R SP29005 UHM20 TX+
0
- GSI Part
- 7005-192827
- Series
- CUT1600
- Operation/Geometry
- Profile Turn
- Chip Breaker
- SP Chip Breaker
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 2.5 mm
- Relief Angle (β)
- 61°
- Nose Radius (r)
- 0.05 mm
- Clearance (α)
- 29°
- (t)
- 4 mm

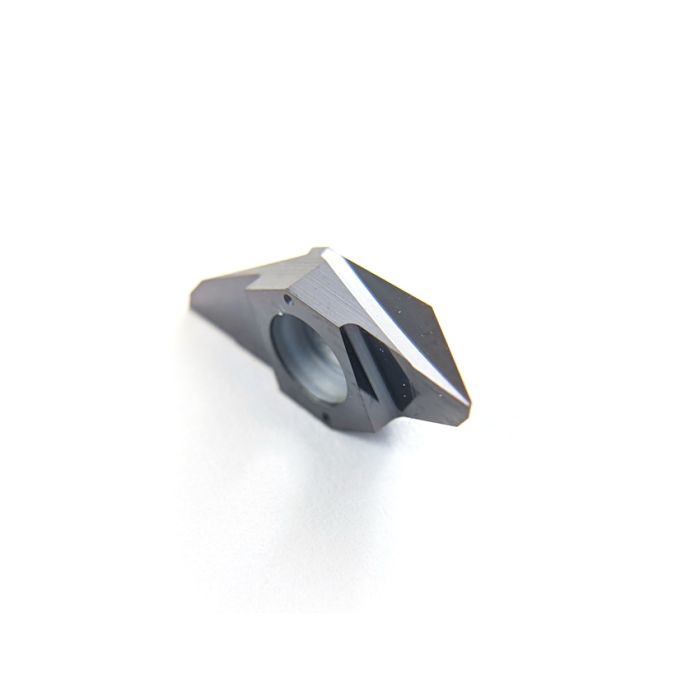

CUT1604 SP Back Turning Inserts
With Type-SP Chip Control
multidec® 1604 turning inserts are designed for back turning operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Back turning operations
- 2.5mm (.0984in) insert widths
- Type-SP chip control: Front and back turning inserts with the type-SP Chip Control are ideal for finishing and micro finishing on materials such as aluminum, breaking up chips and preventing stringy chips from forming.
