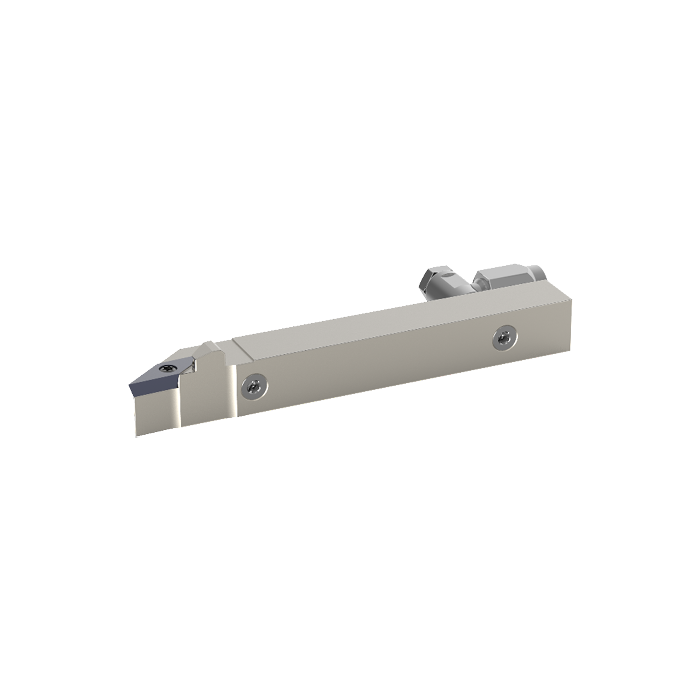

SVJCR 1216 H16 U IC
0
- GSI Part
- 7005-192540
- Holder Type
- Standard
- Holder Style
- SVJC
- Shank Type
- Square
- Repeatability
- < 10µm
- Execution
- Right Hand
- Coolant Capable
- Yes
- Rear Coolant Fitting Part#
- 4005-000111
- Rear Coolant Port Size (d)
- M5
- Side Coolant Fitting Part#
- 4005-000111
- Side Coolant Port Size (c)
- M5
- Insert Type
- ISO 35° VC
- Shank Width (h)
- 12 mm
- Shank Height (b)
- 16 mm
- Shank Length (l)
- 100 mm
- (l1)
- 100 mm
- (x1)
- 15.5 mm
- (z1)
- 27 mm
- Cutting Edge Angle
- 93°
- (f)
- 12 mm
Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy.
- Fits ISO TOP series inserts
