1607-R0.4-2.5 R UHM20
0
- GSI Part
- 7005-191926
- Series
- CUT 1607
- Operation/Geometry
- Full Radius Grooving
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 Uncoated
- Insert Material
- Carbide
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 0.8 mm
- Nose Radius (r)
- 0.4 mm
- Max Grooving Depth (d)
- 2.5 mm

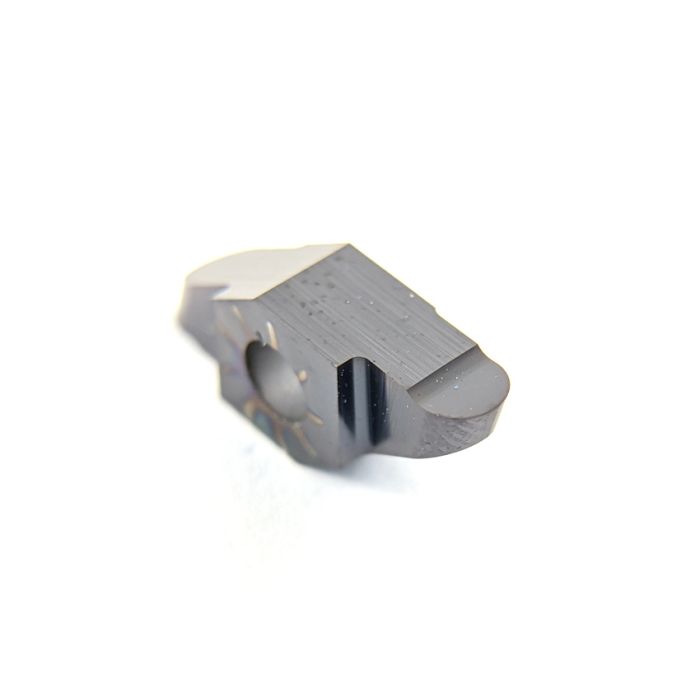

CUT1607 Full Radius Grooving Inserts
multidec® 1607 turning inserts are designed for grooving operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Uncoated
- Full radius grooving geometry
- .05mm to 2.75mm (.0197in to .1083in) insert widths
