1606-B-2-4-55 R UHM20 HPX

Login Required

0

Call for availability or request a quote now.

GSI Part: 7005-153328

Series: CUT1600

Operation/Geometry: Threading

Thread Profile: Partial Profile

Chip Breaker: None

Execution: Right Handed Standard Cut

Grade / Coating: UHM20 HPX

Depth Of Cut (c): 4 mm

Width Of Cut (a): 2 mm

Clearance (α): 55°

(P) Pitch mm: 0.25-2

(e): 0.035 mm

Skip to the end of the images gallery

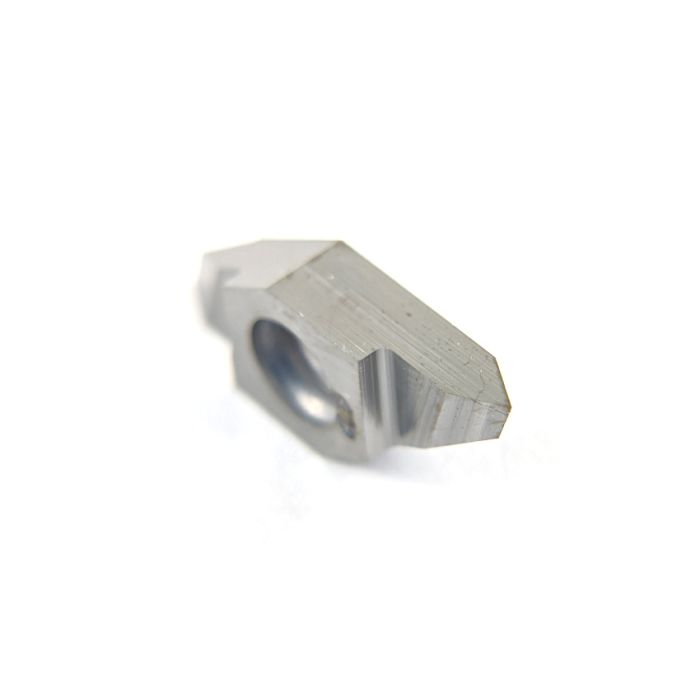

main product photo

Skip to the beginning of the images gallery

Partial profile threading geometry
Featuring 55-degree and 60-degree forms
