1605-B-1.0-2.5 L UHM20 HPX
0
- GSI Part
- 7005-153322
- Series
- CUT1600
- Operation/Geometry
- Groove and Turn
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 HPX
- Depth Of Cut (c)
- 2.5 mm
- Width Of Cut (a)
- 1 mm
- Nose Radius (r)
- 0.05 mm
- Max Grooving Depth (d)
- 2.5 mm

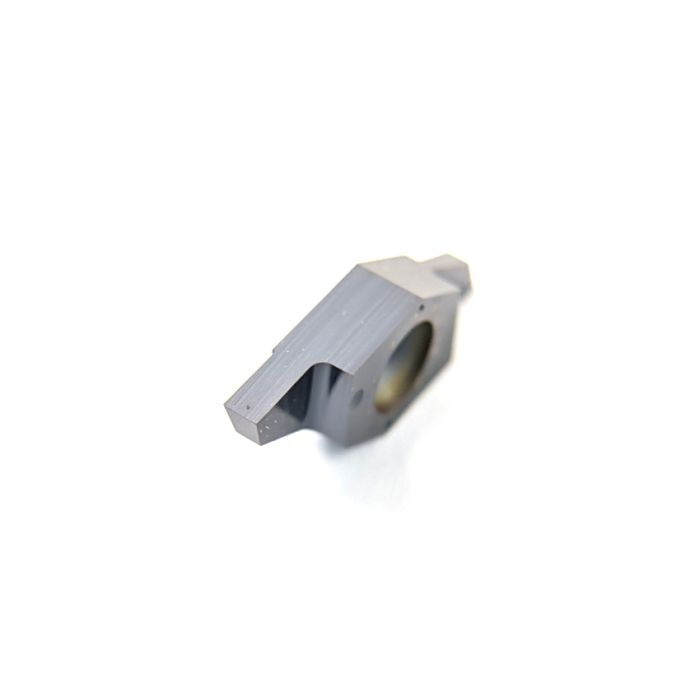

CUT1605 Groove & Turn Inserts
multidec® 1605 turning inserts are designed for grooving operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Groove and turn operations
- .5mm to 1.5mm (.0197in to .0591in) insert widths
- No Chip Control
