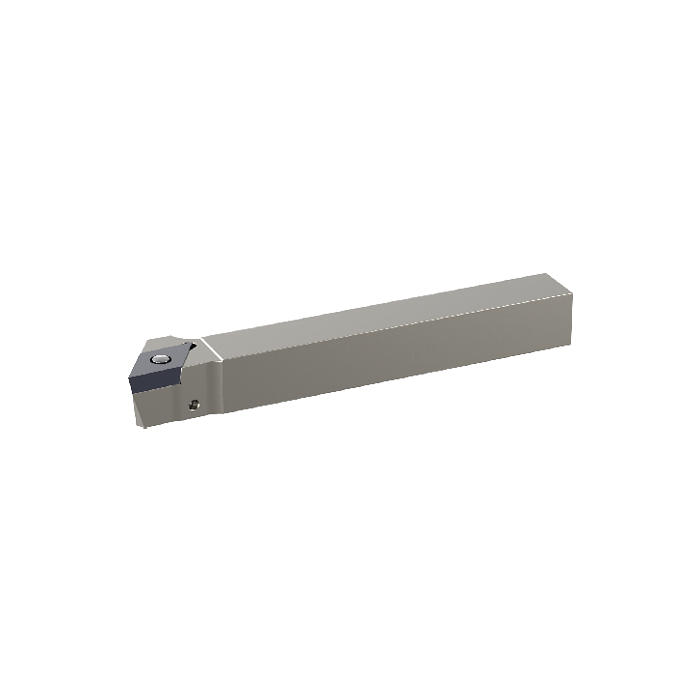

SDJCR 1616 K11 U FC

GSI Part: 7005-153251

Holder Type: Fast Change

Holder Style: SDJC

Shank Type: Square

Repeatability: < 20µm

Execution: Right Hand

Coolant Capable: No

Insert Type: ISO 55° DC

Shank Width (h): 16 mm

Shank Height (b): 16 mm

Shank Length (l): 125 mm

(l1): 125 mm

Cutting Edge Angle: 93°

(f): 16 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Multidec-ISO tool holder shanks are specifically designed for Swiss-Type machines, retaining positioning close to the guidebushing, ensuring rigidity and accuracy. ISO series fast change holders allow the insert fixing screws to be mounted from the opposite side of the holder using tapped bushings, making it easier to change inserts

Uses DC ISO inserts
