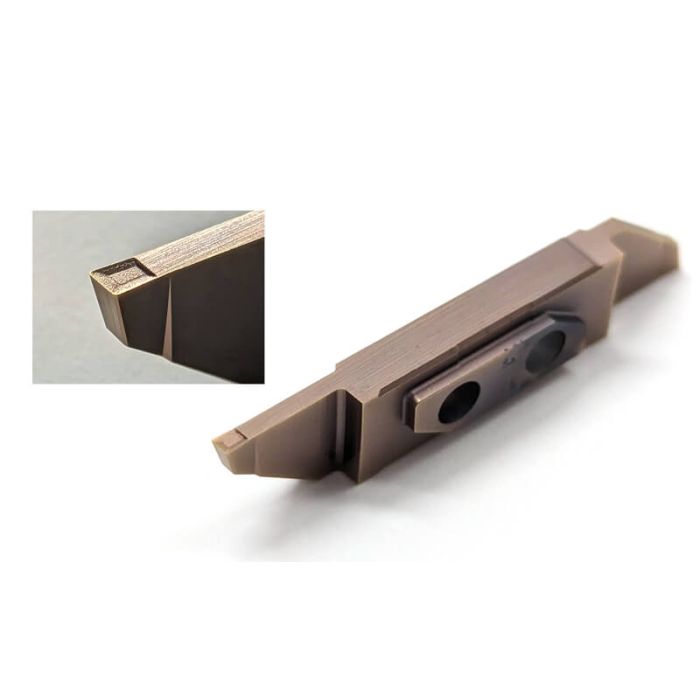

3002-1.5-16 FLV GS12 UHM20 HPX
0
- GSI Part
- 7005-152247
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- GS12 Chip Breaker
- Execution
- Left Handed Inverted Cut
- Grade / Coating
- UHM20 HPX
- Depth Of Cut (c)
- 16 mm
- Width Of Cut (a)
- 1.5 mm
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 7°
- Edge Sharpness
- Sharp
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
Type-GS12 Chip Breaker
Cut-Off Inserts
The GS12 chip breaker is a neutral chip control geometry offering wear-resistant sharp cutting edges enabling better chip control. Ideal for high cutting speeds.
NOTE: Not recomended for use in plastics and titanium due to lower tool life in these materials. Check speeds and feeds for proper usage.
