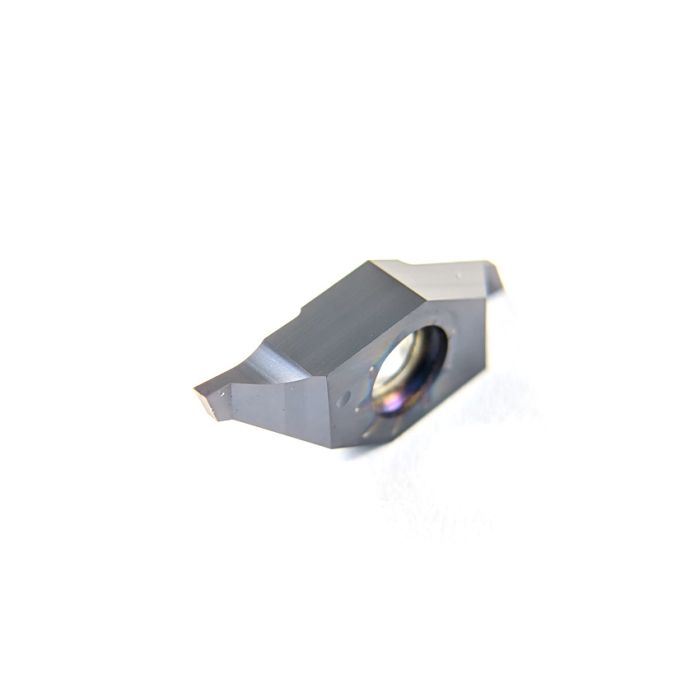

1610-1.5-3 L UHM30 HX
0
- GSI Part
- 7005-150075
- Series
- CUT1600
- Operation/Geometry
- Micro Grooving
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM30 HX
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 1.5 mm
- Relief Angle (β)
- 10°
- Max Grooving Depth (d)
- 3 mm
- (s)
- 3 mm
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough carbide grades combined with a variety of coatings enhance tool life in tough materials typically machined in Swiss-type applications.
- One multidec® 1600 series turning holder will accommodate any multidec® 1600 series inserts.
- Repeatability within .0004in
- Insert pocket absorbs cutting forces, reducing damage to holder
- Coolant-Thru
