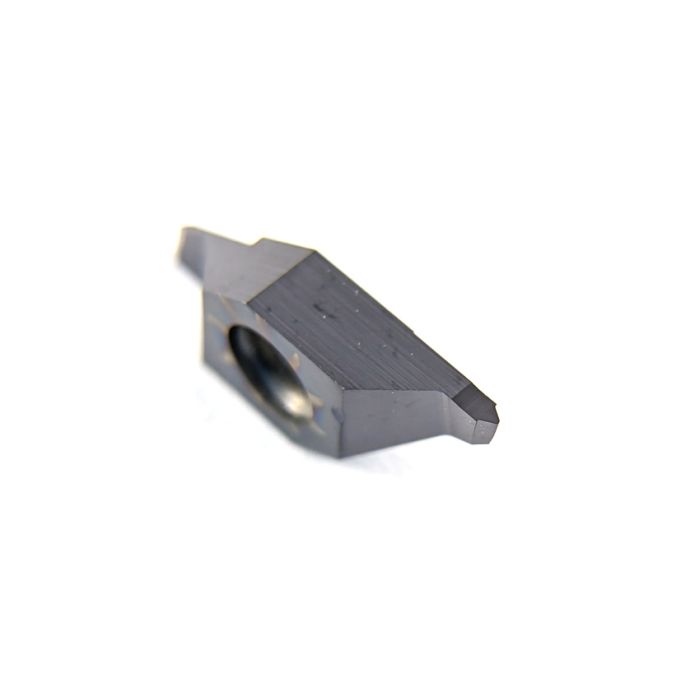

1606-0.5-60 VP R UHM20 HPX
0
- GSI Part
- 7005-148591
- Series
- CUT1606
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 HPX Coated
- Depth Of Cut (c)
- 0 mm
- Clearance (α)
- 60°
- (P) Pitch mm
- 0.5 mm
- NIHS0602
- 0
- NIHS0603
- M 3
- ISODIN
- M 3
- Repeatability
- <20µm
- (t)
- Metric
- (a1)
- 0.28 mm
- (a2)
- 0.28 mm
- Leading Cutting Edge Flat (b)
- 4 mm
- hmin
- 0.307 mm
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough UHM30 grade carbide combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
Highly repeatable cutting edge
.05mm to 2.75mm (.0019" - .1082") insert widths
Micro grooving, front turning, back turning, micro threading, & cut off operations
