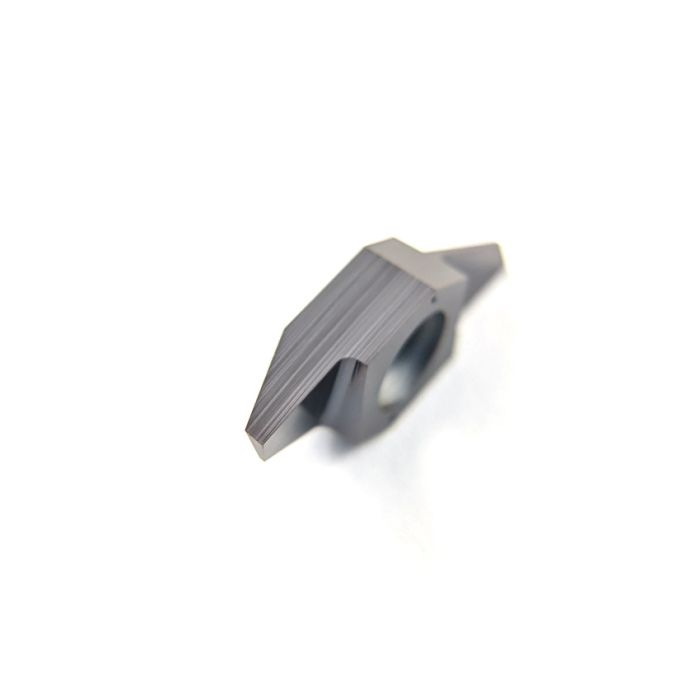

1604-0.15-2 L TOP ZZ UHM20 HPX
0
- GSI Part
- 7005-148499
- Series
- CUT 1604
- Operation/Geometry
- Back Turn
- Chip Breaker
- Top Wiper
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 HPX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 2 mm
- Width Of Cut (a)
- 0.15 mm
- Relief Angle (β)
- 70°
- Nose Radius (r)
- 0 mm
- Max Grooving Depth (d)
- 1 mm
- Repeatability
- <20µm
- (γ)
- 8°
- (δ)
- 0°
- Leading Cutting Edge Flat (b)
- 0.05 mm
CUT1604 TOP Back Turning Inserts
With TOP Wiper Geometry
multidec®-TOP 1604 turning inserts are designed for back turning operations on Swiss-type CNC machines. The TOP trailing edge allows up to 100% higher feed rates than with conventional ISO inserts.
- UHM20 HPX
- Solid Carbide
- .15 mm to 1.2 mm (0.59in - 0.047in) insert widths available
- Ground Holders available (sold separately) with hardened and nickle-plated surfaces and holders with internal cooling «IC», especially for sliding headstock automatic lathes, round off multidec®-TOP.
