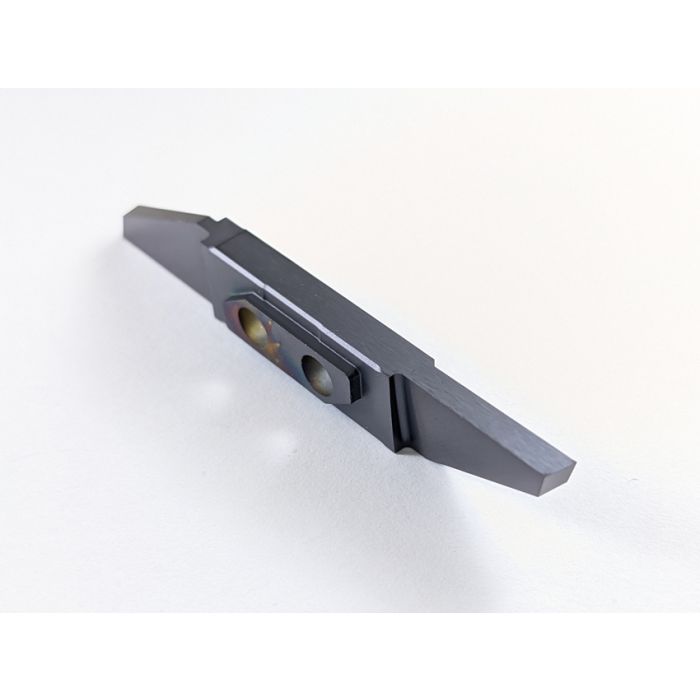

3002-1.5-16 RV UHM20 HPX
10
- GSI Part
- 7005-148067
- Series
- CUT3000
- Operation/Geometry
- Cut-Off
- Chip Breaker
- None
- Execution
- Right Handed Inverted Cut
- Grade / Coating
- UHM20 HPX
- Insert Material
- Carbide
- Depth Of Cut (c)
- 16 mm
- Width Of Cut (a)
- 1.5 mm
- Nose Radius (r)
- 0 mm
- Clearance (α)
- 15°
CUT3002 Cutoff Inserts
The multidec® CUT 3000 Series is suitable for Swiss type lathes with bar diameters between 10mm and 32mm. This series includes a large selection of cutting geometries with assorted chip breakers, specifically designed for small to medium sized parts manufacturing.
multidec® 3002 cutoff inserts are ideal for cutting tough materials such as Titanium, 300 Series Stainless & 17 4 PH. This makes them the choice for the medical & aerospace manufacturing industries.
Carbide grades of coated and uncoated ultra-fine grain substrates. View Speeds & Feeds Chart
- Applications: Roughing, Finishing, and Micro Finishing
- Precision Ground
- 0.8 mm - 3 mm insert widths
- Two cutting edges per insert
- Inserts fit all Multidec-CUT 1600 and Multidec-CUT 3000 Holders Shop Holders Here
