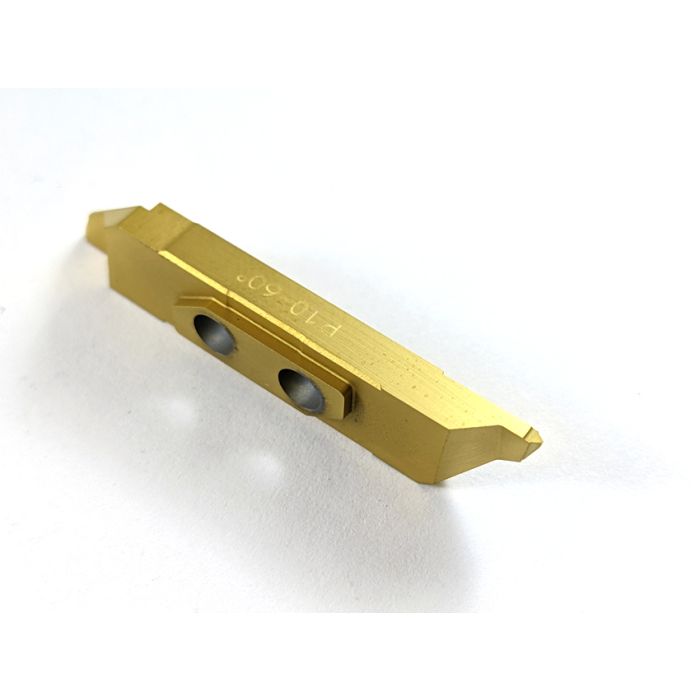

3006-2.5-10-60 VP R UHM20 HPX

Call for availability or request a quote now.

GSI Part: 7005-147032

Series: CUT3000

Operation/Geometry: Threading

Thread Profile: Full Profile

Thread Standard: Metric

Chip Breaker: None

Execution: Right Handed Standard Cut

Grade / Coating: UHM20 HPX

Depth Of Cut (c): 5 mm

(P) Pitch mm: 2.5

ISODIN13: M 18/20/22

(a1): 1.38 mm

(a2): 1.38 mm

hmin: 1.534 mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
