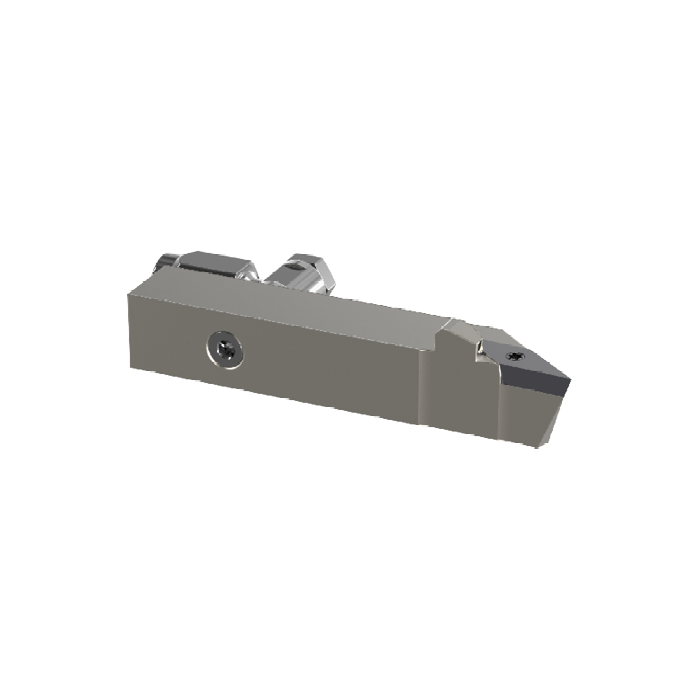

SVJCL 1/2" E11 IC-S
0
- GSI Part
- 7005-143595
- Holder Type
- SHORT
- Holder Style
- SVJC
- Shank Type
- Square
- Repeatability
- < 10µm
- Execution
- Left Hand
- Coolant Capable
- Yes
- Rear Coolant Port Size (d)
- M8x1
- Side Coolant Port Size (c)
- M5
- Insert Type
- ISO 35° VC
- Shank Width (h)
- .5in
- Shank Height (b)
- .5in
- Shank Length (l)
- 70 mm
- (x1)
- 16.3 mm
- (z1)
- 21 mm
- Cutting Edge Angle
- 93°
multidec® SHORT coolant-thru holders enable the use of multidec® turning inserts on commonly available quick change tooling systems. multidec® 1600, 3000, ISO VC, & ISO VP series inserts are currently available.
- Coolant-thru
