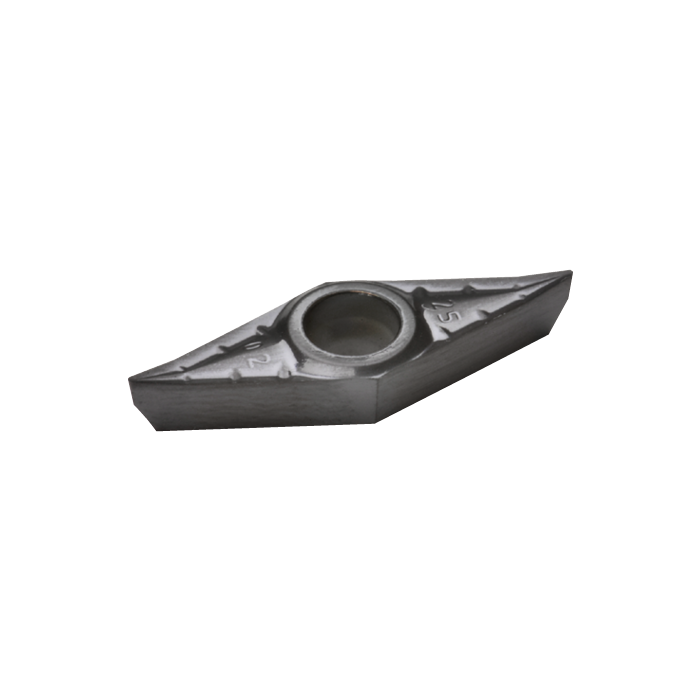

VCGT 110304 FN PA5 UHM10 HX
0
- GSI Part
- 7005-126562
- Series
- ISO 35° VC
- Operation/Geometry
- VCGT
- Chip Breaker
- PA5
- Execution
- Neutral Cut
- Grade / Coating
- UHM10 HX
- Insert Material
- Carbide
- Nose Radius (r)
- 0.4 mm
- Rake Type
- Polished Rake
- Edge Sharpness
- Sharp Cutting Edge
- Repeatability
- < 20µm
- (l)
- 11.1 mm
- (l1)
- 6.8 mm
- (C)
- < 0.002
"
The Multidec-ISO series of Swiss-turning tools is a robust solution for small parts turning. A wide variety of carbide grades, coatings, as well as chip breaker styles and holder designs are available creating a broad selection of solutions for precision turning. Inserts are available with 35°, 55° & 80° angles.
"""
