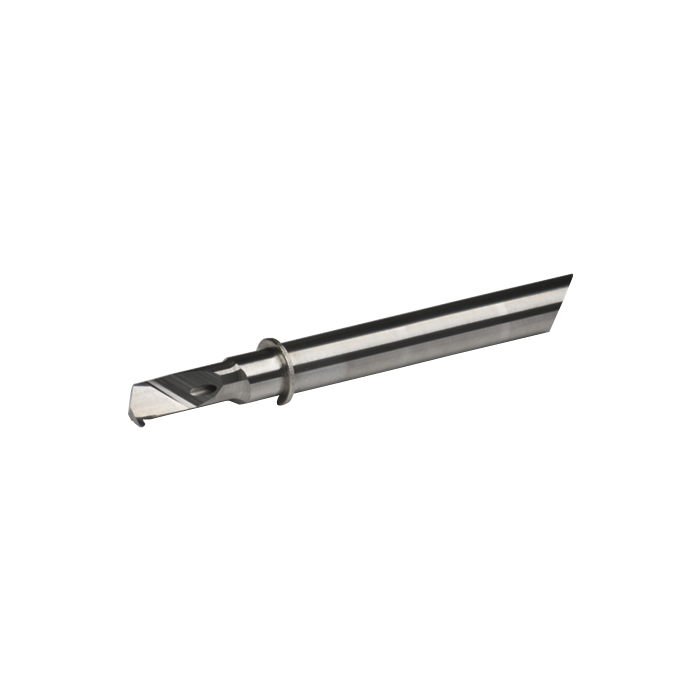

SDR 448 292 L UHM20 HX: Utilis Boring Bar 2.92 min Bore 4mm Shank fits in SDA 4 Holder
2
- GSI Part
- 7005-111860
- Series
- SDR
- Operation
- Radius Grooving
- Minimum Hole Ø
- 2.92
- Width Of Cut
- 2.63
- Max Depth Of Cut (l1)
- 15
- Shank Size
- 4
- Coating
- UHM20HX
- Execution
- L
- Tool Nose Radius
- 0.2
- OAL (l0)
- 48
- l2
- 0.4
- X-offset
- 1.46
- t
- 0.4
- h
- 0.6
UTILIS Swiss Type Boring tools are designed by Swiss engineers who understand the requirements and demands of today's Swiss Turning Industry. The tooling that they have engineered excels in the areas demanded by the Swiss machinist to produce complete, accurate, high quality precision parts. Extreme rigidity, tool life, repeatability & ease of setup are just some of the qualities that UTILIS Swiss Turning Tools feature.
Quickly Setup, Locate & Orient Micro Boring Bars
Coolant-Thru Capability down to .5 mm
Multi-faceted Boring Bar neck reduces harmonic vibration, resulting in Better Surface Finish & Longer Tool Life
NO SPECIAL WRENCHES REQUIRED
Holders Available for Any Swiss Machine
