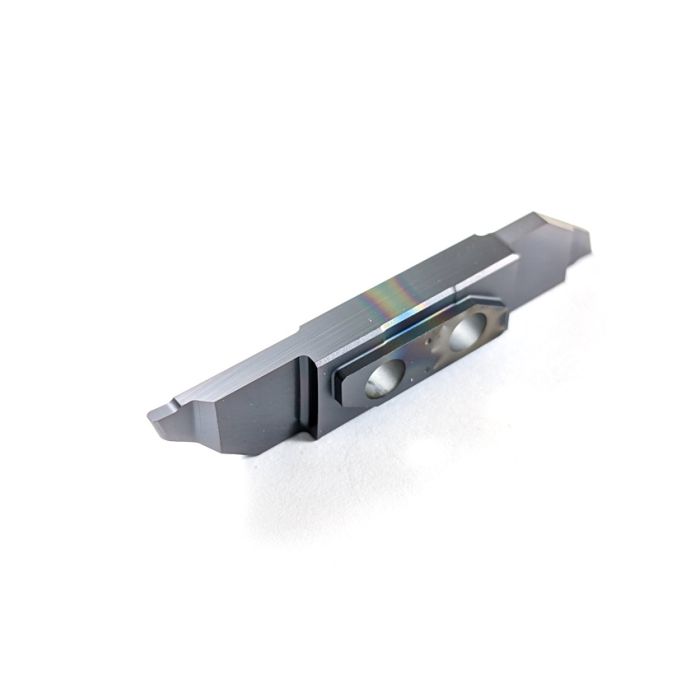

3007-R1.5-16 L UHM20 TX+
0
- GSI Part
- 7005-044729
- Series
- CUT3000
- Operation/Geometry
- Full Radius Grooving
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Depth Of Cut (c)
- 17 mm
- Width Of Cut (a)
- 3 mm
- Relief Angle (β)
- 6°
- Nose Radius (r)
- 1.5 mm
- Max Grooving Depth (d)
- 16 mm
- (s)
- 2 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
