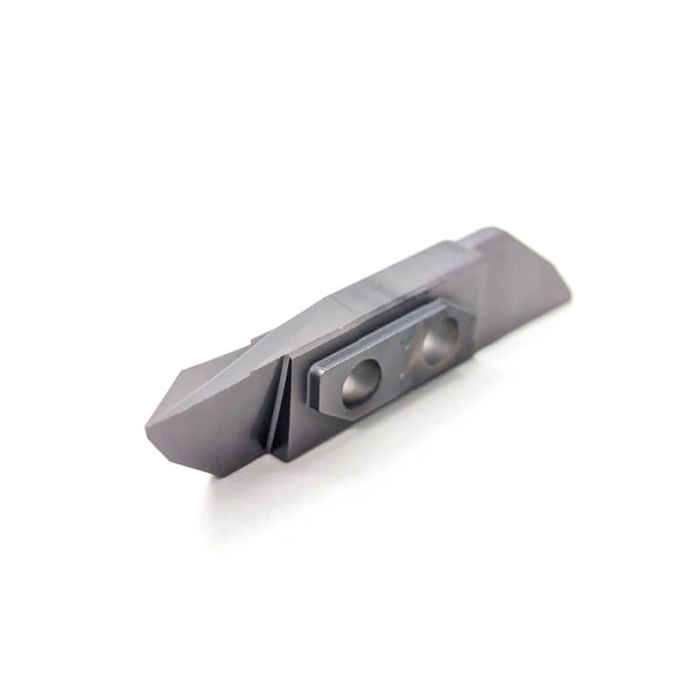

3004-3.2-6 L SP29015 UHM20 TX+
10
- GSI Part
- 7005-044447
- Series
- CUT3000
- Operation/Geometry
- Profile Turn
- Chip Breaker
- SP Chip Breaker
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Depth Of Cut (c)
- 11 mm
- Width Of Cut (a)
- 3.2 mm
- Relief Angle (β)
- 60°
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 29°
- (t)
- 5 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
Type-SP Chip Breaker
For Front-Turning & Back-Turning Inserts
Front and back turning inserts with the type-SP chip breaker are ideal for finishing and micro finishing on materials such as aluminum, breaking up chips and preventing stringy chips from forming.
