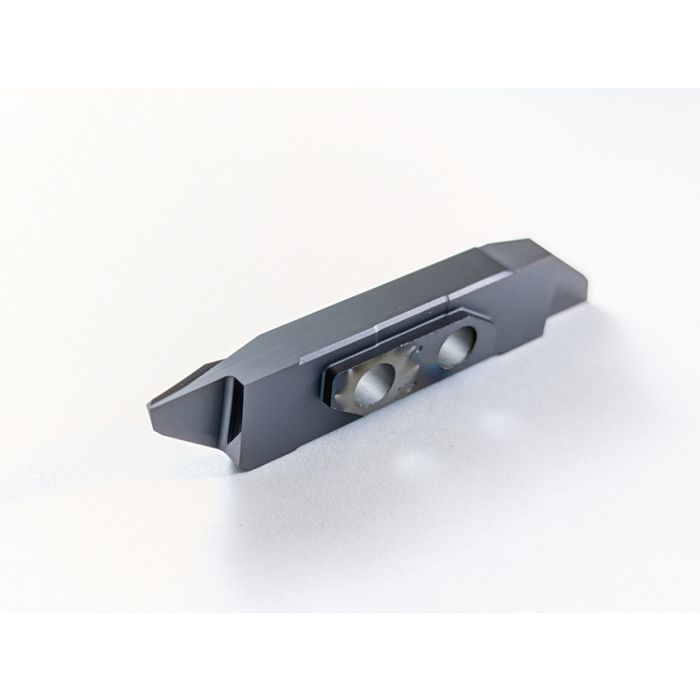

3004-2.4-6 L SP TOP 20015 UHM20 TX+
0
- GSI Part
- 7005-044437
- Series
- CUT3000
- Operation/Geometry
- Back Turn
- Chip Breaker
- SP Chip Breaker & Top Wiper
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 TX+
- Depth Of Cut (c)
- 6 mm
- Width Of Cut (a)
- 0.5 mm
- Relief Angle (β)
- 70°
- Nose Radius (r)
- 0.15 mm
- Clearance (α)
- 19°
- (δ)
- 15°
- Leading Cutting Edge Flat (b)
- 2.4 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
Type-SP Chip Breaker
For Front-Turning & Back-Turning Inserts
Front and back turning inserts with the type-SP chip breaker are ideal for finishing and micro finishing on materials such as aluminum, breaking up chips and preventing stringy chips from forming.
