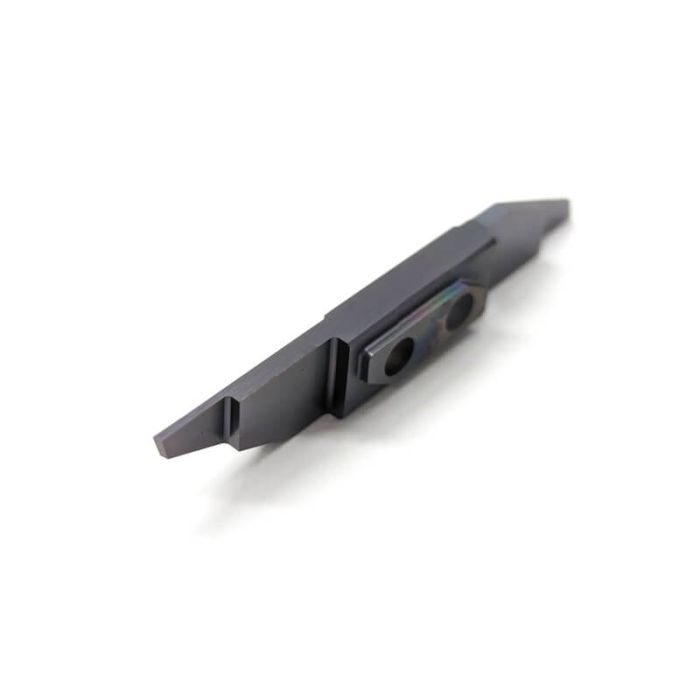

3002-0.5-2.5-16 LV G20 UHM20 HPX
0
- GSI Part
- 7005-042235
- Series
- CUT3000
- Operation/Geometry
- Cut-Off Slim & Deep
- Chip Breaker
- None
- Execution
- Left Handed Inverted Cut
- Grade / Coating
- UHM20 HPX
- Depth Of Cut (c)
- 2 mm
- Width Of Cut (a)
- 0.5 mm
- Clearance (α)
- 20°
- (a1)
- 1.9 mm
- (c1)
- 16 mm
Swiss Made UTILIS World Class tools deliver proven production performance and extended tool life. All 3000 series inserts feature a wide variety of chip breaker geometries and will fit the same holder, reducing tooling costs. The unique insert holding design absorbs machining forces providing one of the most rigid Swiss-turning systems available to the industry today.
