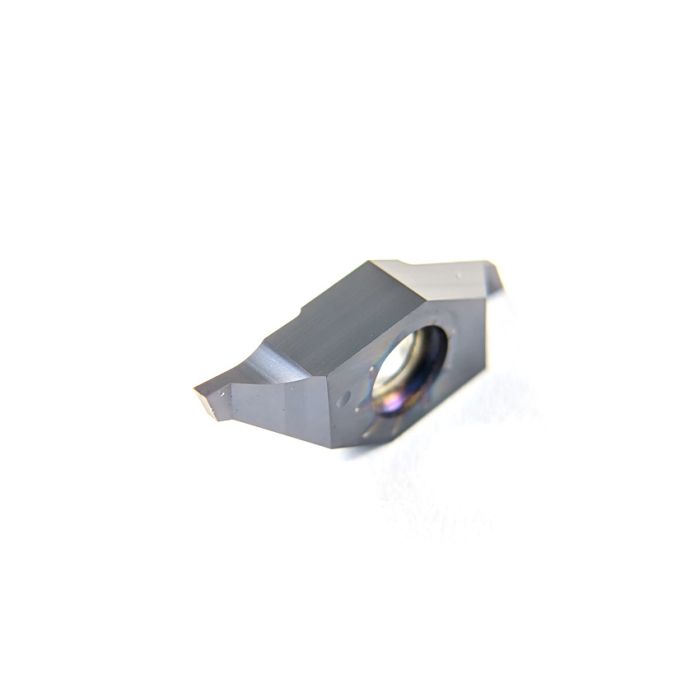

1610-0.4-0.8 L UHM20 TX+
0
- GSI Part
- 7005-041290
- Series
- CUT1610
- Operation/Geometry
- Micro Grooving
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Insert Material
- Carbide
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 0.4 mm
- Relief Angle (β)
- 6°
- Repeatability
- <20µm
- (s)
- 1 mm
- Tolerance
- ±0.02
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough UHM30 grade carbide combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- TX+ Coated
- Highly repeatable cutting edge
- .05mm to 2.75mm (.0019" - .1082") insert widths
- Micro grooving, front turning, back turning, micro threading, & cut off operations
