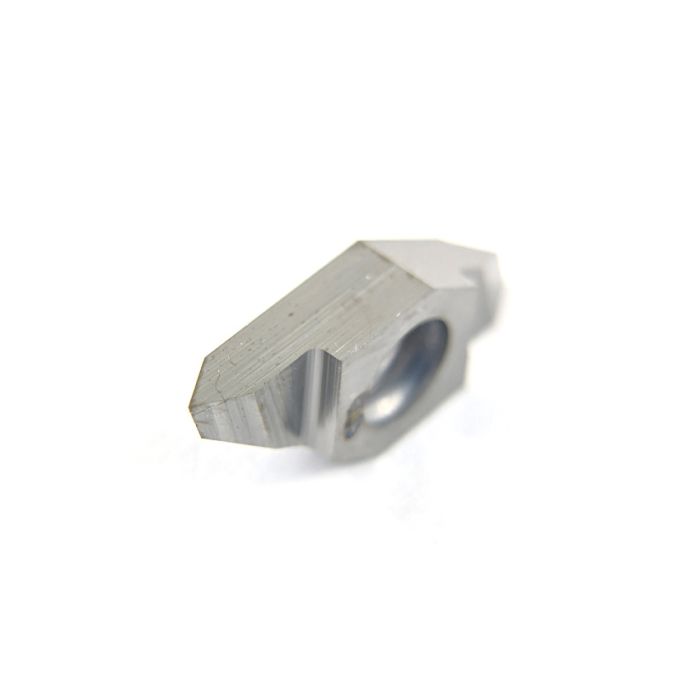

1606-2-4-55 L UHM20
0
- GSI Part
- 7005-041227
- Series
- CUT1606
- Operation/Geometry
- Threading
- Thread Profile
- Partial Profile
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 Uncoated
- Depth Of Cut (c)
- 4 mm
- Width Of Cut (a)
- 2 mm
- Clearance (α)
- 55°
- (P) Pitch mm
- 0.25-2 mm
- Repeatability
- <20µm
- (t)
- Metric
- (e)
- 0.035 mm
CUT1606 Partial Profile Threading Inserts - Metric Standard
- Uncoated
- 2 mm width of cut
- Featuring 55-degree and 60-degree forms
