1606-G 19-55 VP L UHM20 HPX
0
- GSI Part
- 7005-041216
- Series
- CUT1600
- Operation/Geometry
- Threading
- Thread Profile
- Full Profile
- Thread Standard
- Pipe Thread
- Chip Breaker
- None
- Execution
- Left Handed Standard Cut
- Coating
- UHM20 HPX
- Depth Of Cut (c)
- 3.3 mm
- Clearance (α)
- 55°
- (P) Pitch Threads/inch
- 19
- (P) Pitch mm
- 1.337
- ANSI B1.1
- 1/8-1/4
- (a1)
- 0.74 mm
- (a2)
- 0.74 mm
- hmin
- 0.856 mm

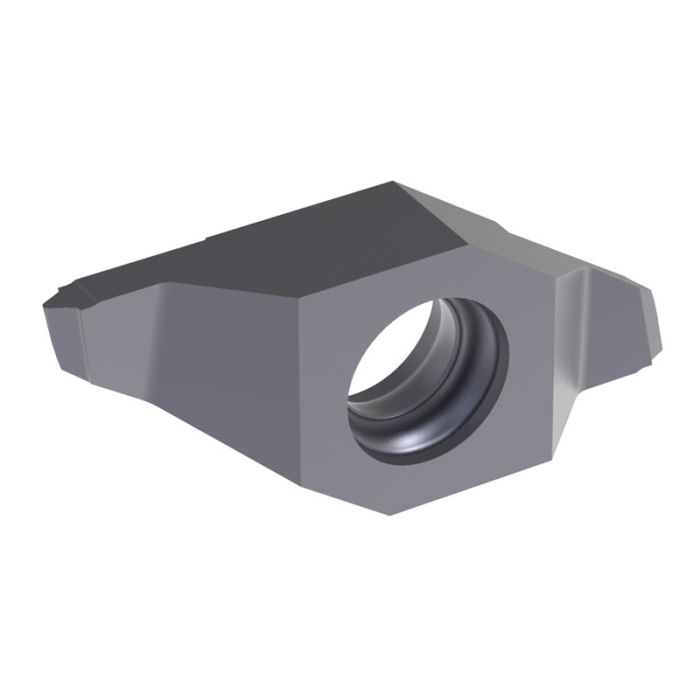

CUT1606 G Full Profile Threading Inserts - Pipe Thread
multidec® 1606 turning inserts are designed for threading operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Full profile threading geometry
- Featuring ANSI B1.1 1/8 - 7/8
- Pipe thread
