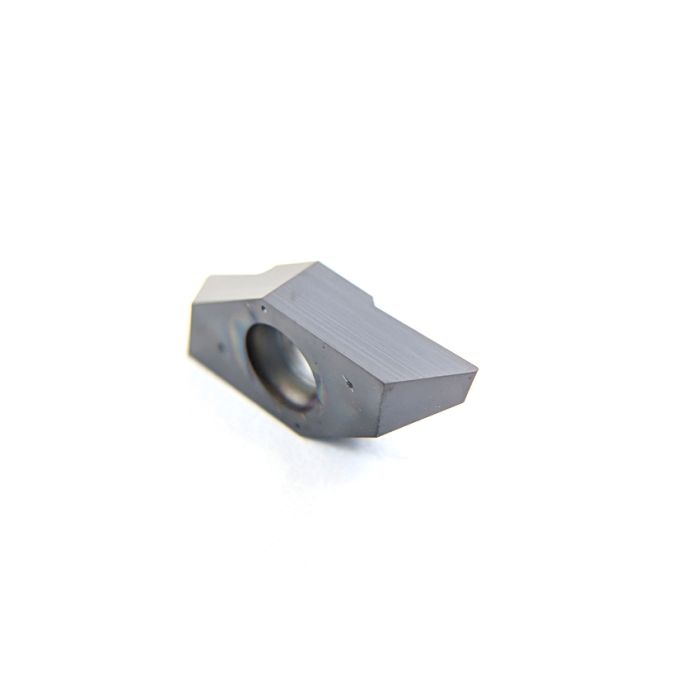

1603-3.0-5 R 55008 UHM20 TX+
5
- GSI Part
- 7005-040880
- Series
- CUT1600
- Operation/Geometry
- Front Turn
- Chip Breaker
- None
- Execution
- Right Handed Standard Cut
- Grade / Coating
- UHM20 TX+
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 3 mm
- Relief Angle (β)
- 55°
- Nose Radius (r)
- 0.08 mm
multidec® 1600 Series Swiss Tools are designed for micro turning and grooving operations in Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125" in diameter. Tough UHM30 grade carbide combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
Highly repeatable cutting edge
.05mm to 2.75mm (.0019" - .1082") insert widths
Micro grooving, front turning, back turning, micro threading, & cut off operations
