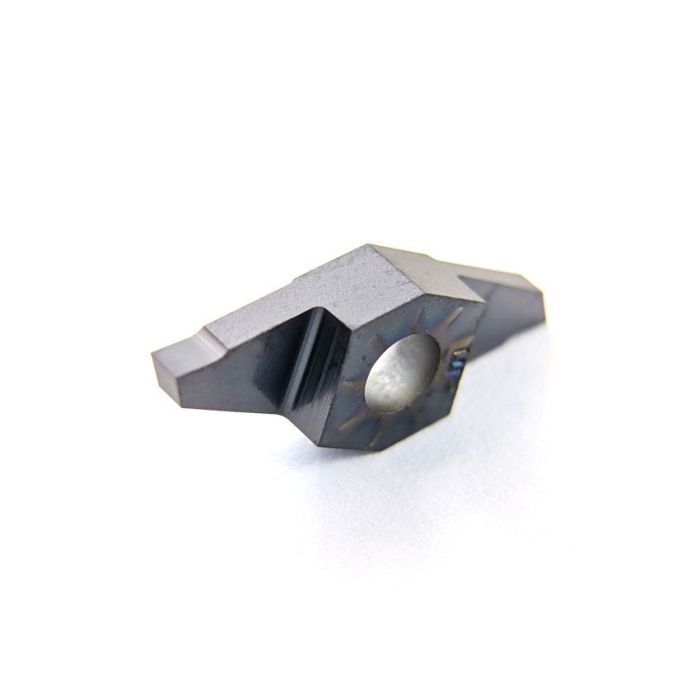

1602-0.5-2.5 LN SPT UHM20
0
- GSI Part
- 7005-040826
- Series
- CUT 1602
- Operation/Geometry
- Cut-Off
- Chip Breaker
- SPT Chip Breaker
- Execution
- Left Handed Neutral Cut
- Coating
- UHM20 Uncoated
- Insert Material
- Carbide
- Depth Of Cut (c)
- 2.5 mm
- Width Of Cut (a)
- 0.5 mm
- Relief Angle (β)
- 20°
- Nose Radius (r)
- 0.05 mm
- Repeatability
- <10µm
- (s)
- 2 mm
CUT1602 SPT Cut-Off Inserts
With Type-SPT Chip Control
multidec® 1602 SPT turning inserts are designed for cut-off operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Cut-off operations
- .5mm to 1.5mm (.0197in to .0591in) insert widths
- Type-SPT chip control: The multidec® CUT1602 cut off inserts with type-SPT Chip Control features a positive rake intended for use in soft and stringy materials. The SPT Chip Control comes in three different angles described by the product number suffix
SPT06: 6° rake
SPT12: 12° rake
SPT: 20° rake
