1602-1.5-5 L TOP 008 UHM20 HPX
0
- GSI Part
- 7005-040799
- Series
- CUT1600
- Operation/Geometry
- Cut-Off
- Chip Breaker
- Top Wiper
- Execution
- Left Handed Standard Cut
- Grade / Coating
- UHM20 HPX
- Depth Of Cut (c)
- 5 mm
- Width Of Cut (a)
- 1.5 mm
- Relief Angle (β)
- 1.5°
- Nose Radius (r)
- 0.08 mm
- Clearance (α)
- 15°
- apmax
- 0.3 mm
- Leading Cutting Edge Flat (b)
- 0.3 mm

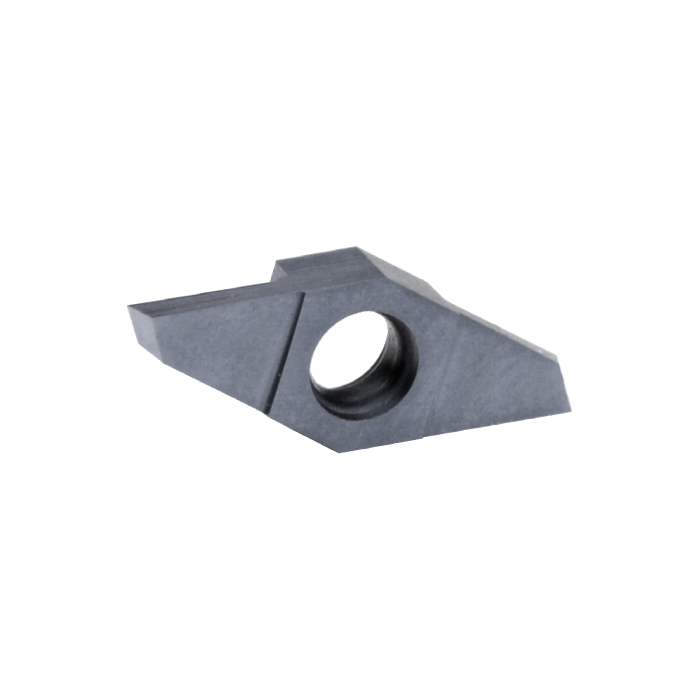

CUT1602 TOP Cut-Off and Turn Inserts
With TOP Wiper Geometry
multidec® 1602 TOP turning inserts are designed for cut-off and turn operations on Swiss-type CNC machines. Perfectly designed for the smallest of Swiss machines the 1600 series excels at work under .125in diameter. Tough carbides combined with a variety of coatings enhances tool life in tough materials typically machined in Swiss-type applications.
- Cut-off and turn operations
- 1.5mm (.0591in) insert widths
- Top wiper geometry allows the insert to turn as well as cut-off with improved surface finish.
